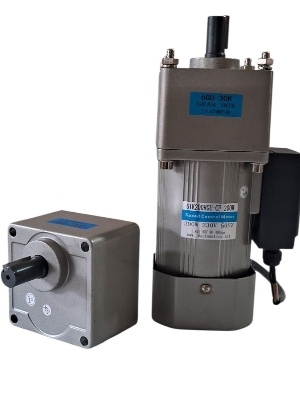

Reversible Induction Motor

Reversible Induction Motor
Reversible Induction Motor
Send Inquiry
Product Code : GB 03
Brand Name : J. D. AUTOMATION
Price And Quantity
  • Minimum Order Quantity
  • 01 Piece
  • Price
  • 6500 INR/Box
  • Price Range
  • 4000.00 - 6500.00 INR/Box
Product Specifications
  • Voltage
  • 230 Volt (v)
  • Poles Number
  • 4
  • Ambient Temperature
  • Ambinent Temprature Celsius (oC)
  • Sealed Type
  • Mechanical Seal
  • Rated Frequency
  • 50 Hertz (HZ)
  • Rated Voltage
  • 220-230 Volt (V)
  • Pressure
  • Low Pressure
  • Product Type
  • Induction Motor
  • Output Power
  • 180 Watt (w)
  • Frequency (MHz)
  • 50 Hertz (HZ)
  • Protect Feature
  • Totally Enclosed
  • Phase
  • Single Phase
  • Efficacy
  • IE1
  • Speed
  • 100 RPM
  • Starting Type
  • Electric Start
  • Power
  • 180 Watt (w)
  • Dimension(L*W*H)
  • 104x104x280 Millimeter (mm)
  • Weight
  • 7 Kilograms (kg)
  • Warranty
  • 1 year against manufacturing defects
Product Description

We provide our customers with optimum quality Reversible Induction Motor. The offered gear motor is manufactured using high quality components and it is available in different phases. Our offered gear motor is admired across the world for its prompt reversibility, compact design, easy speed regulation and long service life. Moreover, this Reversible Induction Motor can be obtained by our clients at market leading price and within given span of time.

Features:

  • Easily installation
  • Less maintenance
  • Long service life
  • Sturdy construction

180W Standard Induction & Quick Reversible

  • Frame Size: 90x90mm
  • Specification: Continuous Rating Four Poles class F
  • The JDA range of compact AC geared motors are ideal for a wide variety of applications
  • due to their long life, aesthetic design, low noise and high efficiency. All of the motors
  • use standard AC induction technology, and can be combined with a range of in-line helical
  • gearboxes, to give a compact and very cost-effective geared motor solution.
  • In addition to the Standard Induction motors, JDA also offers a range of Quick Reversible
  • models. These are ideally suited for Stop/Start or Forward/Reverse applications, due to their
  • integrated friction braking system, which reduces over-run and stopping time (S2 duty).
  • All 180W motors are supplied with a normally closed thermal switch integrated into the motor windings, for thermal protection purposes.
Trade Information
  • FOB Port
  • mumbai
  • Payment Terms
  • Cash Advance (CA)
  • Supply Ability
  • 500 Piece Per Month
  • Delivery Time
  • 30 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Cartoon Packed
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
