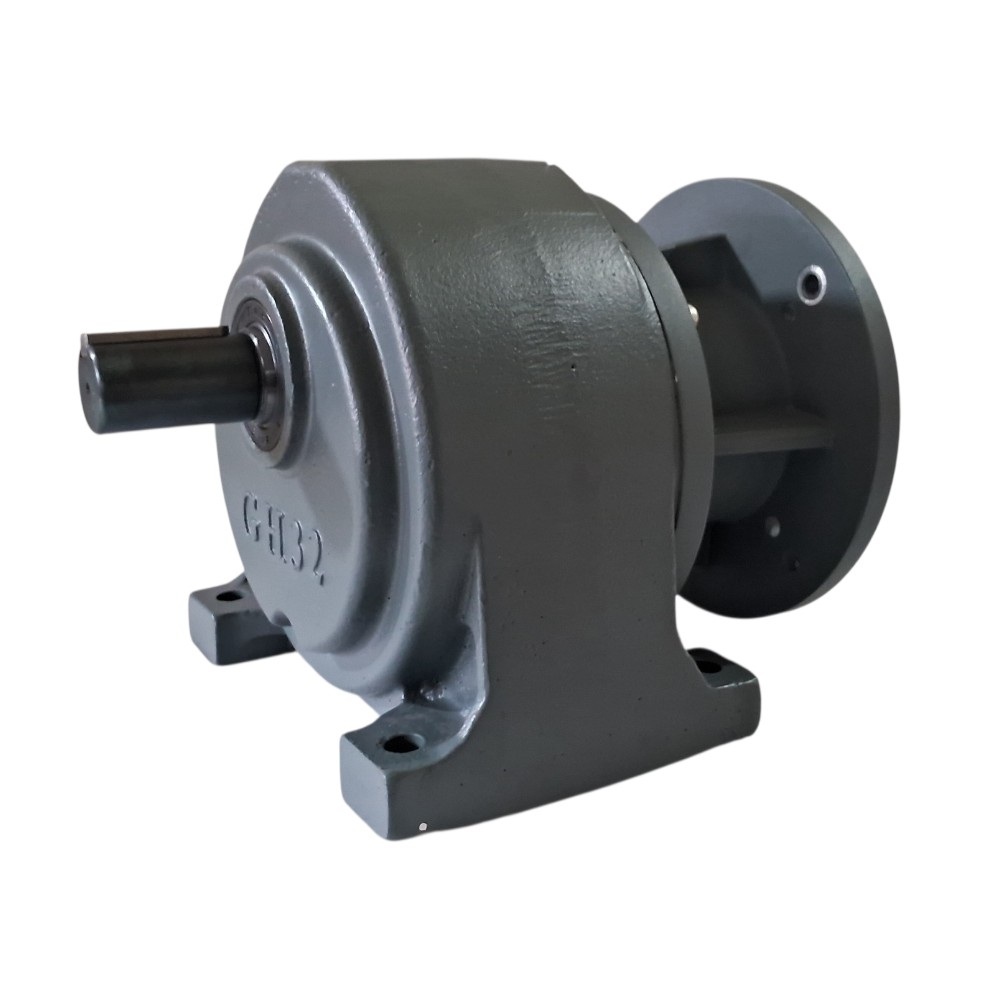

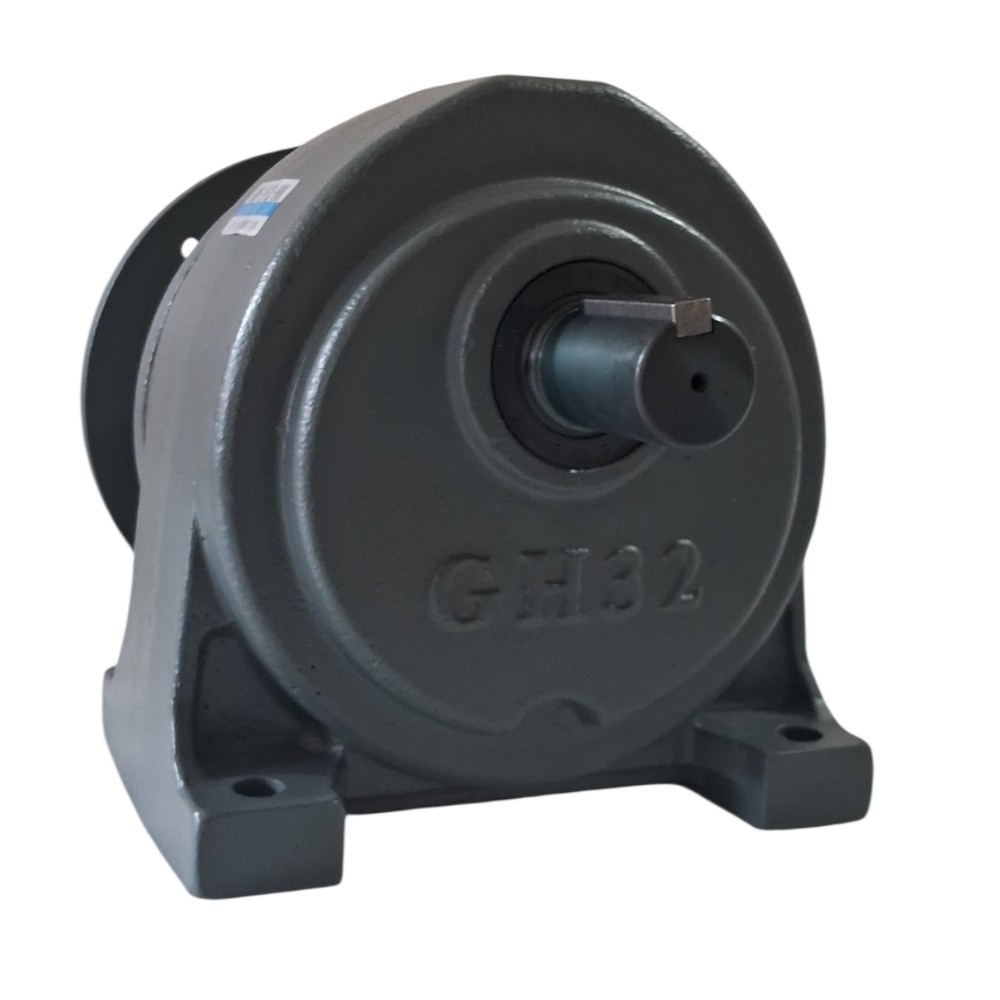

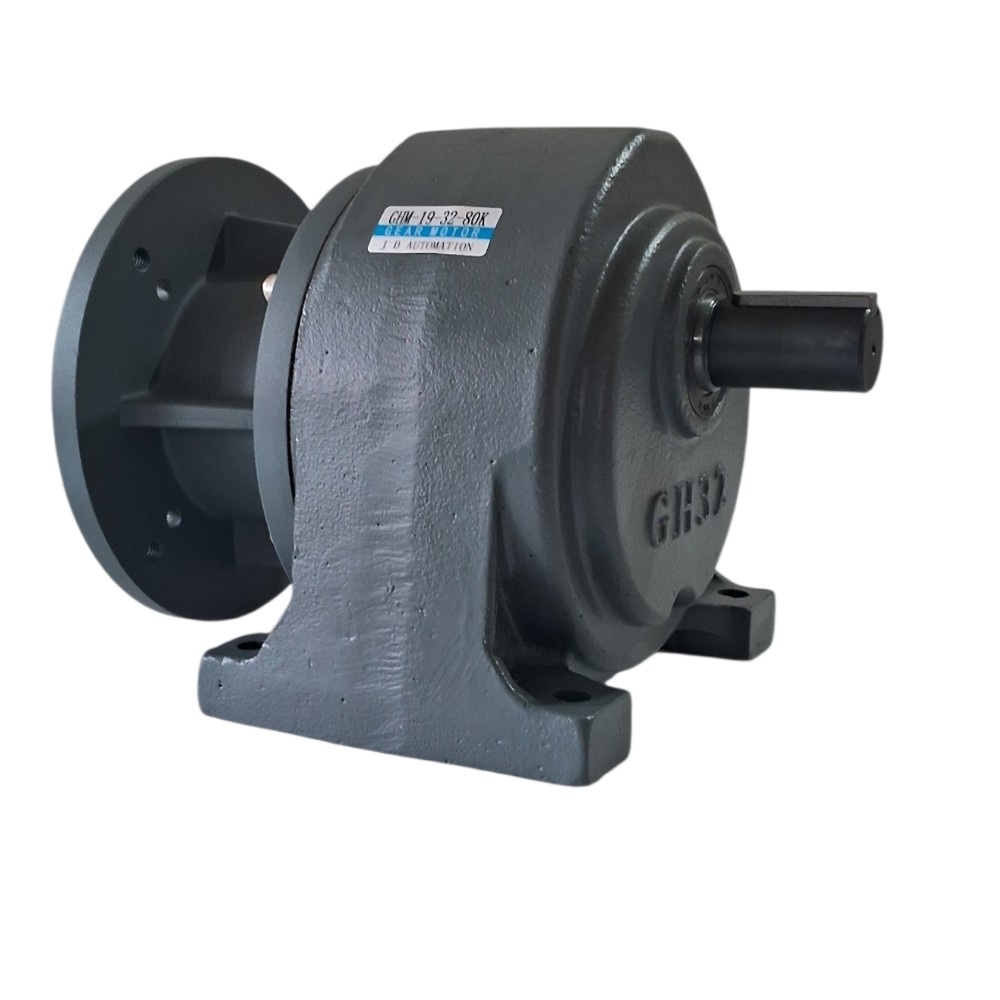

AC Gear Motor

Name: AC Gear Motor
Brand: J. D. AUTOMATION
Price: 6000.0 INR
Availability: InStock

6000.0 INR/Number

Get a Price/Quote

Product Details:

Usage INDUSTRIAL COMMERICAL AUTOMATION
Gear Type Spur Gears
Material Steel
Processing Type Die Casting
Gear Tooth Profile Helical Gear
Gearing Arrangement Helical
Direction CLOCKWISE
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

AC Gear Motor Price And Quantity

Price 6000.0 INR/Number
Minimum Order Quantity 1 Number

AC Gear Motor Product Specifications

Direction CLOCKWISE
Rated Power 0.09KW
Input Speed 1440 RPM
Processing Type Die Casting
Gear Type Spur Gears
Gearing Arrangement Helical
Material Steel
Efficiency 85
Voltage 230 Volt (v)
Output Torque 10 N-cm
Output Speed 30 RPM
Usage INDUSTRIAL COMMERICAL AUTOMATION
Gear Tooth Profile Helical Gear

AC Gear Motor Trade Information

Delivery Time 1 Days

Product Description

AC Gear Motor Manufacturer in Pune

J D Automation AC Gear Motors are engineered to deliver maximum torque, superior efficiency, and unmatched reliability for demanding industrial applications. Designed with precision gearing technology and high-performance AC motors, our geared motor solutions ensure smooth power transmission, consistent speed control, and long-lasting operation even under continuous heavy-duty working conditions.

AC Gear Motors are precision-engineered industrial drive solutions designed to provide high torque, controlled speed, energy efficiency, and reliable continuous-duty performance. These motors are widely used in conveyors, packaging machines, material handling systems, pharmaceutical equipment, food processing machinery, and industrial automation applications.

Technical Specifications

Parameter	Specification
Motor Type	AC Induction Geared Motor
Power Range	6W to 5HP (0.006kW to 3.7kW)
Supply Voltage	110V, 220V, 230V, 415V AC
Phase	Single Phase / Three Phase
Frequency	50Hz / 60Hz
Motor Speed	500 RPM, 900 RPM, 1400 RPM, 2800 RPM
Output Speed	1 RPM to 500 RPM
Gear Ratio	3:1 to 3000:1
Output Torque	Up to 3000 Nm
Duty Cycle	S1 Continuous Duty
Insulation Class	Class B / F
Protection Class	IP44, IP55, IP65 (Optional)
Ambient Temperature	-10C to +50C
Mounting Type	Foot Mount, Flange Mount, Shaft Mount
Gearbox Type	Worm, Helical, Inline Helical, Bevel Helical
Housing Material	Aluminium / Cast Iron
Lubrication	Long-Life Synthetic Gear Oil
Efficiency	Up to 95% (Helical Models)
Noise Level	Low Noise Design
Rotation Direction	CW / CCW Reversible
Cooling Method	TEFC (Totally Enclosed Fan Cooled)

Performance Features

High Torque Performance

Delivers maximum torque at low output speeds, making it ideal for heavy-duty industrial applications.

Precision Speed Reduction

Wide gear ratio selection ensures accurate speed control and smooth operation.

Energy Efficient Design

Optimized motor winding and gear geometry reduce power consumption while maintaining high output performance.

Robust Construction

Manufactured using high-grade alloy steel gears and precision-machined components for extended service life.

Low Maintenance

Sealed gearbox design with premium lubrication minimizes maintenance requirements.

Continuous Industrial Duty

Designed for 24/7 operation in demanding manufacturing and automation environments.

Available Gearbox Configurations

Worm Geared Motor
Helical Geared Motor
Inline Geared Motor
Bevel Helical Geared Motor
Hollow Shaft Geared Motor
Right Angle Geared Motor
Compact AC Gear Motor
Brake AC Gear Motor

Industrial Applications

Conveyor Systems
Material Handling Equipment
Packaging Machines
Pharmaceutical Machinery
Food Processing Plants
Textile Machinery
Printing Machines
Industrial Mixers
EOT Cranes
Special Purpose Machines (SPM)
Automation Equipment
Assembly Lines

Why J D Automation?

High Torque Output
Precision Engineered Gearbox
Heavy-Duty Industrial Design
Low Noise & Vibration
Energy Efficient Operation
Wide Range of RPM & Ratios
Custom Manufacturing Available
Fast Delivery Across India
OEM & Bulk Supply Capability

Optimized for Automation

This AC gear motor is purpose-built for integration into automation systems across industrial and commercial sectors. Its precise output speed and high efficiency make it ideal for conveyor belts, automated machinery, and assembly lines. The helical gear arrangement contributes to smooth, quiet, and reliable operation, reducing maintenance requirements and ensuring uninterrupted workflow in demanding environments.

Quality Construction and Reliable Performance

Constructed from high-quality steel and manufactured using the die casting process, this AC gear motor offers superior durability. The thoughtful choice of helical gears ensures minimized wear, longevity, and efficient torque transmission. Its robust build and design are tailored to withstand the rigors of industrial usage while delivering consistent, efficient performance day after day.

FAQ's of AC Gear Motor:

Q: How is the AC Gear Motor installed in industrial automation systems?

A: The AC Gear Motor can be installed by securing its mounting base to a compatible fixture and connecting it to the power supply (230 V). Wiring and mechanical integration should follow manufacturer guidelines to ensure optimal performance and safety.

Q: What are the key benefits of the helical gear arrangement in this motor?

A: Helical gear arrangements provide smoother and quieter operation compared to spur gears. They also improve torque transmission efficiency and extend the lifespan of the motor by reducing gear wear.

Q: When should this AC Gear Motor be used over other types?

A: Use this gear motor when your application requires precise speed control (30 RPM output), reliable torque (10 N-cm), and a compact, durable motor. It is especially suitable for automation systems where efficiency and longevity are critical.

Q: Where can this AC Gear Motor be typically applied?

A: This motor is commonly used in conveyor belts, packing machines, automated material handling, and other industrial or commercial automation setups where slow, steady rotation and consistent torque are essential.

Q: What is the manufacturing process for this AC Gear Motor?

A: The motor is produced using the die casting process, which ensures precise and consistent component formation, leading to enhanced durability and reliable performance in demanding applications.

Q: How does using a 230 Volt AC Gear Motor improve operational efficiency?

A: A 230 Volt AC input allows for stable and efficient energy usage, contributing to the motor's high operational efficiency of up to 85%. This reduces energy costs and ensures reliable, continuous operation in automation environments.
