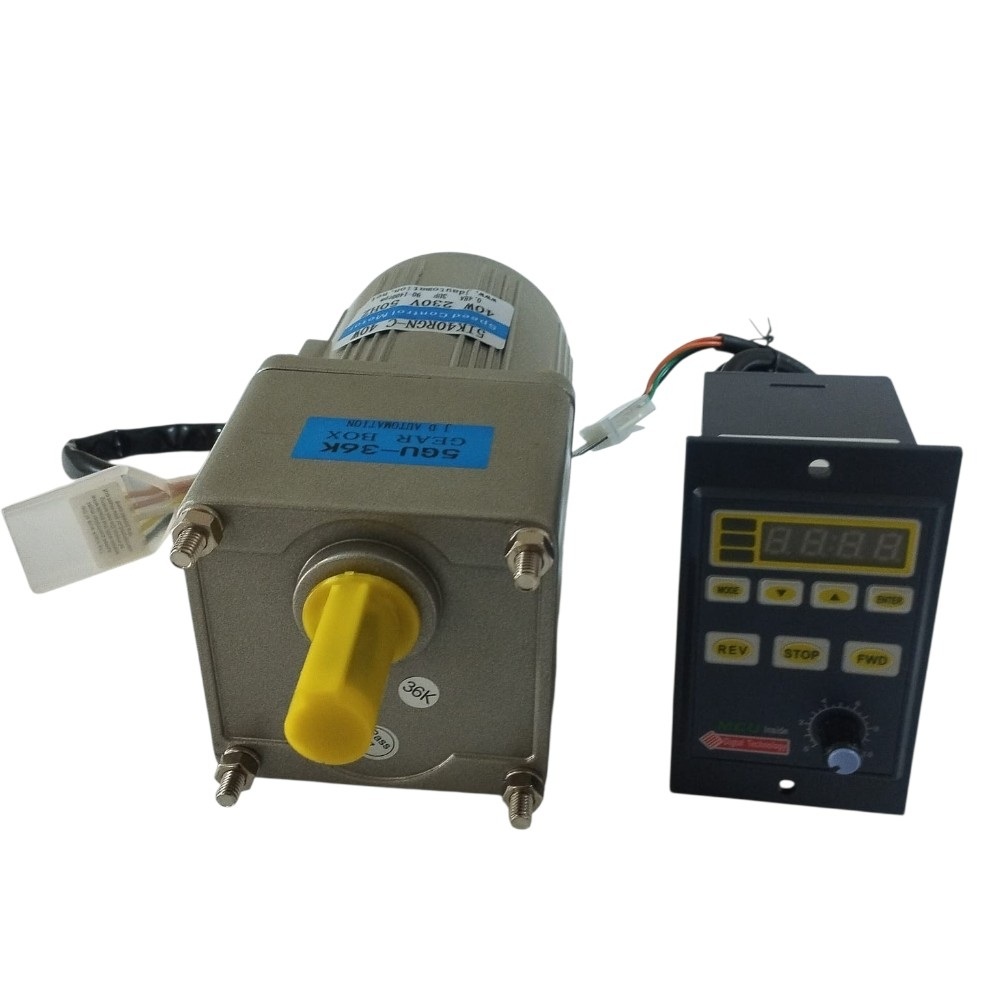

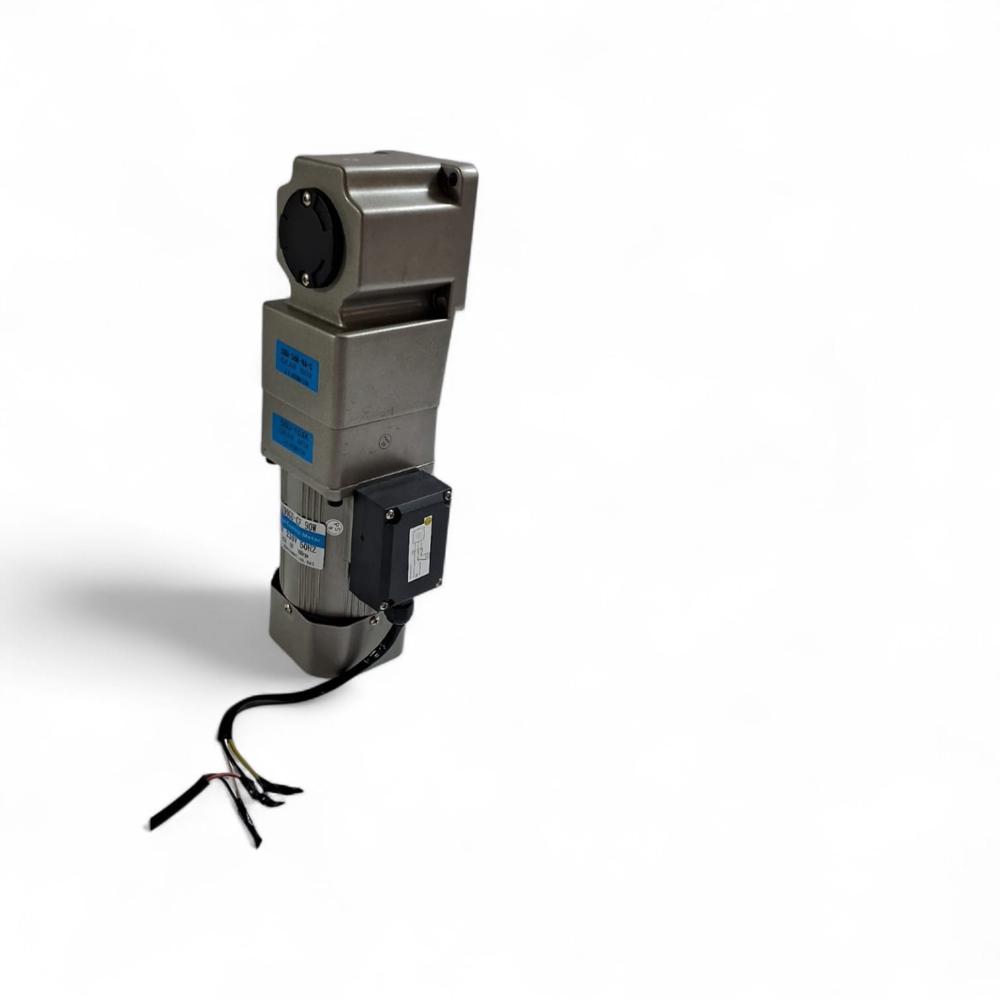

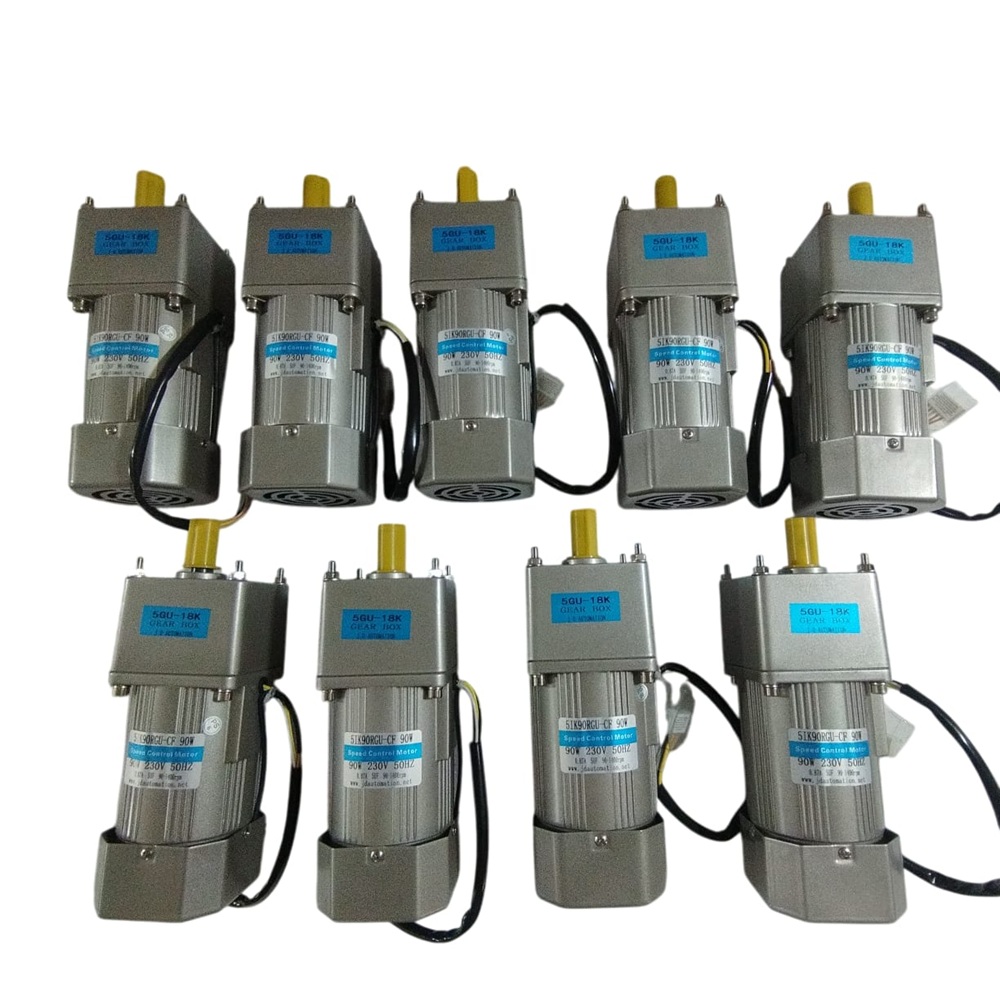

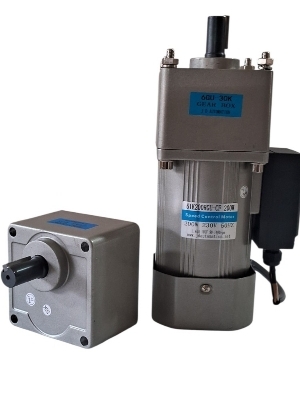

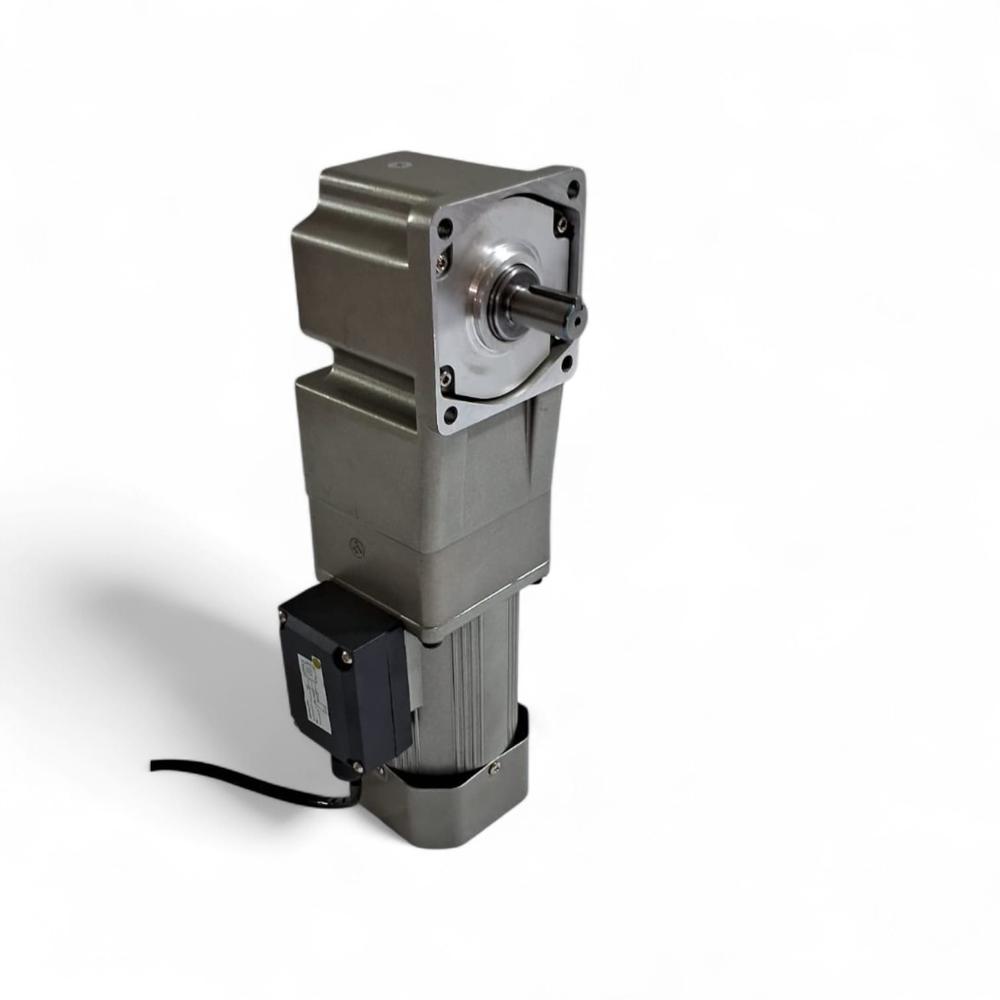

AC Geared Motor Manufacturer in MUMBAI

6000.0 INR/Piece

Get a Price/Quote

Product Details:

Ambient Temperature 50 Celsius (oC)
Current Type 0.8A
Rated Frequency 50 Hertz (HZ)
Rated Voltage 230 Volt (V)
Noise Level 50 db
Efficacy 85
Bearing Type SKF
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

AC Geared Motor Manufacturer in MUMBAI Price And Quantity

Price 6000.0 INR/Piece
Minimum Order Quantity 1 Piece

AC Geared Motor Manufacturer in MUMBAI Product Specifications

Voltage 230 Volt (v)
Bearing Type SKF
Efficacy 85
Weight 5 Kilograms (kg)
Color GEY
Rated Voltage 230 Volt (V)
Noise Level 50 db
IP Rating ip44
Power 90 Watt (w)
Rated Frequency 50 Hertz (HZ)
Current Type 0.8A
Ambient Temperature 50 Celsius (oC)
Phase 230VAC
Power Rating 90WATT
Operating Temperature 50 Celsius (oC)
Warranty 1 YEAR AGINST MANUFACTURING DEFECT ONLY
Material EN8
Horse Power 1/8HP
Dimension (L*W*H) 90X90X256 Millimeter (mm)
Output Power 90 Watt (w)
Cooling Method FAN COOLED
Features HIGH TORQUE
Usage & Applications INDUSTRIAL ,COMMERICAL
Mounting Type FLANGE
Shaft Diameter 15 Millimeter (mm)
Frequency (MHz) 50 Hertz (HZ)
Standard INDSUCTION MOTOR
Starting Type Electric Start
Speed 30 RPM
Protect Feature Totally Enclosed
Product Type Asynchronous Motor
Torque 20 N-cm
Poles Number 4

AC Geared Motor Manufacturer in MUMBAI Trade Information

Delivery Time 2 Days

Product Description

90 Watt AC Geared Motor J D Automation

High Torque Industrial Drive Solution for Precision Automation

J D Automation's 90 Watt AC Geared Motor is a premium-grade industrial power transmission solution engineered to deliver superior torque, precise speed control, and reliable continuous-duty performance. Designed for demanding industrial automation and material handling applications, this geared motor combines a high-efficiency AC induction motor with a precision-machined reduction gearbox to achieve exceptional output torque while maintaining smooth and energy-efficient operation.

Manufactured using 100% electrolytic copper windings, precision-ground alloy steel gears, heavy-duty bearings, and robust aluminum die-cast housing, the motor ensures maximum durability, low maintenance requirements, and long operational life. Its advanced gearbox design minimizes backlash, vibration, and noise, providing consistent performance even under varying load conditions.

Advanced Technical Specifications

Parameter	Specification
Product Type	AC Geared Motor
Power Rating	90 Watt
Motor Technology	AC Induction Motor
Supply Voltage	220V AC Single Phase / 415V AC Three Phase
Frequency	50Hz / 60Hz
Motor Speed	1350 RPM / 1400 RPM
Output Speed Range	0.5 RPM to 500 RPM
Gear Reduction Ratio	3:1 to 3000:1
Output Torque	Up to 300 Kg-cm
Duty Cycle	S1 Continuous Duty
Motor Efficiency	High Efficiency Design
Insulation Class	Class F (Standard)
Protection Class	IP55 Standard, IP65 Optional
Cooling Method	TEFC (Totally Enclosed Fan Cooled)
Rotation	CW / CCW Reversible
Mounting Options	Foot Mount, Flange Mount, Face Mount
Gear Material	Case Hardened Alloy Steel
Shaft Material	EN8 / EN19 Steel
Housing Material	High-Strength Aluminium Die Cast
Bearings	Heavy Duty Deep Groove Ball Bearings
Lubrication	Long-Life Synthetic Grease
Ambient Temperature	-10C to +50C
Noise Level	Less than 60 dB
Service Life	30,000+ Operating Hours

Material Handling Systems

Belt Conveyors
Roller Conveyors
Chain Conveyors
Transfer Systems

Industrial Automation

Assembly Line Equipment
Indexing Tables
Special Purpose Machines (SPM)
Motion Control Systems

Packaging Machinery

Filling Machines
Labeling Machines
Carton Sealing Machines
Wrapping Machines

Food & Pharmaceutical Equipment

Inspection Conveyors
Processing Machines
Packaging Systems
Sorting Equipment

Why Choose J D Automation?

J D Automation specializes in manufacturing high-performance geared motor solutions for industrial automation, material handling, and OEM applications. Every 90 Watt AC Geared Motor undergoes stringent quality inspections and performance testing to ensure maximum reliability, efficiency, and durability under real-world operating conditions.

Available Output Speeds: 0.5 RPM to 500 RPM
Gear Ratios: 3:1 to 3000:1
Mounting: Foot, Flange, Face Mounted
Customization: Available as per customer requirements

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'AC Geared Motors' category

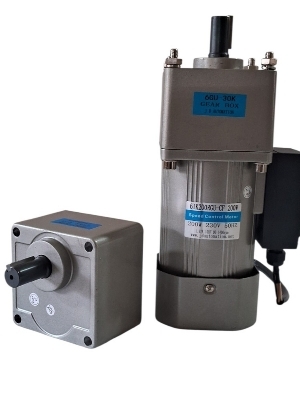

AC Geared Motor Manufacturer in Bengaluru Price : 7000 INR/Number Minimum Order Quantity : 1 Voltage : 230 Phase : 230 vac 1 phases Dimension (L*W*H) : 104x104x300 Warranty : 1 year against manufacturing defect Poles Number : 4 Starting Type : Electric Start Speed : 30rpm Pressure : Low Pressure Weight : 8kg Efficacy : 86 Ambient Temperature : 50 Rated Frequency : 50 Power : 200watt Sealed Type : Mechanical Seal Rated Voltage : 230vac
