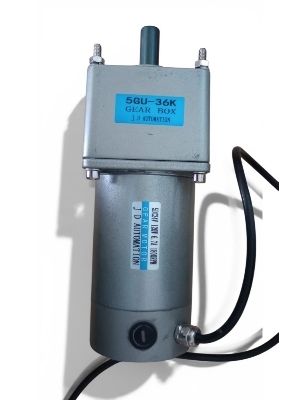

Dc Gear Motor Manufacturer

6500 INR/Piece

Get a Price/Quote

Product Details:

Voltage 24vdc
Pressure High Pressure
Poles Number 2
Output Power 120watt
Protect Feature Totally Enclosed
Efficacy IE1
Speed 1500
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Dc Gear Motor Manufacturer Price And Quantity

Minimum Order Quantity 5 Number
Price 6500 INR/Piece

Dc Gear Motor Manufacturer Product Specifications

Pressure High Pressure
Protect Feature Totally Enclosed
Voltage 24vdc
Efficacy IE1
Output Power 120watt
Warranty 1 year against manufacturing defect
Poles Number 2
Weight 5kg
IP Rating ip55
Starting Type Electric Start
Speed 1500
Power 120watt

Dc Gear Motor Manufacturer Trade Information

FOB Port Mumbai
Payment Terms Cash Against Delivery (CAD), Cash Advance (CA), Telegraphic Transfer (T/T)
Supply Ability 500 Number Per Month
Delivery Time 30 Days
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market South India, Central India, West India, North India, East India, Gujarat, Karnataka

Product Description

J D AUTOMATION DC GEAR MOTOR High Torque Low Noise Long Service Life Reliable Industrial Performance PRODUCT OVERVIEW J D Automation manufactures premium quality DC Gear Motors designed for industrial automation, material handling, packaging, conveyor systems, and OEM machinery. Our motors combine high starting torque, smooth operation, compact construction, and excellent durability for continuous-duty applications. PRODUCT RANGE Parameter Specification Power 15W, 25W, 40W, 60W, 120W, 200W, 450W Voltage DC12V, DC24V, DC90V, DC220V Frame Sizes 60mm, 70mm, 80mm, 90mm, 104mm, 120mm Gear Type Standard Helical / Reinforced Helical Reduction Ratio 3:1 to 750:1 Insulation Class Class F (180C) Operating Temperature -10C to +40C Bearing Precision Ball Bearing Duty Continuous Industrial Duty MODEL CODING Motor Frame Code Code Frame Size 2 60 60 mm 3 70 70 mm 4 80 80 mm 5 90 90 mm 6 104 104 mm 7 120 120 mm Power Code 15 = 15W 25 = 25W 40 = 40W 60 = 60W 120 = 120W 200 = 200W 450 = 450W Voltage Code 12 = DC12V 24 = DC24V 90 = DC90V 220 = DC220V Shaft & Gear Code Description GN Standard Helical Gear GU Reinforced Helical Gear A Flat Shaft A1 Keyway Shaft RV Suitable for RV Gearbox M Brake Motor GEARBOX DETAILS Gearbox Models 60mm 70mm 80mm 90mm 104mm 120mm Available Gear Ratios 3:1 5:1 7.5:1 10:1 15:1 20:1 30:1 40:1 50:1 60:1 80:1 100:1 150:1 200:1 Up to 750:1 GENERAL TECHNICAL SPECIFICATIONS Insulation Resistance Minimum 20 M (500V DC Megger Test) Dielectric Strength 1.5kV AC for 1 minute 2kV AC for 400V models Temperature Rise Less than 80C Insulation Class Class F (180C) Operating Conditions Temperature: -10C to +40C Humidity: Non-condensing Continuous Duty Operation STANDARD FEATURES High Starting Torque Compact Design Quiet Operation Precision Helical Gears Heavy Duty Ball Bearings Long Working Life Low Maintenance High Efficiency Brake Motor Option Custom Gear Ratios Available APPLICATIONS Conveyor Systems Packaging Machines Pharmaceutical Equipment Textile Machinery Food Processing Machines Printing Machines Automatic Gates Material Handling Systems Industrial Automation Robotics OEM Machinery Special Purpose Machines (SPM) WHY CHOOSE J D AUTOMATION? Manufacturer of Industrial Gear Motors High Quality Manufacturing Standards Custom Built Solutions Fast Delivery Across India Technical Support Competitive Pricing Reliable After-Sales Service J D AUTOMATION Manufacturer of AC Gear Motors, DC Gear Motors, Worm Gearboxes, Helical Gearboxes, Servo Planetary Gearboxes, Screw Jacks & Industrial Automation Solutions.
