Geared Brake Motor

Get a Price/Quote

Product Details:

Efficacy High Efficiency
Motor Type Squirrel Cage Induction Geared Motor with Brake
Cooling Method Fan Cooled
Sealed Type IP55
Standard IS/IEC 60034-1 certified
Voltage 415 V / 230 V
Horse Power 1 HP to 10 HP
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Geared Brake Motor Product Specifications

Color Blue / Grey
Cooling Method Fan Cooled
Motor Type Squirrel Cage Induction Geared Motor with Brake
Efficacy High Efficiency
Standard IS/IEC 60034-1 certified
Speed 1440 RPM / 960 RPM
Shaft Diameter Custom (standard sizes: 24mm to 38mm)
Sealed Type IP55
Power 0.75 kW to 7.5 kW
Starting Type Direct On Line (DOL)
Horse Power 1 HP to 10 HP
Torque Up to 150 Nm (model-specific)
Voltage 415 V / 230 V
Rated Voltage 415 V
Phase Three Phase / Single Phase
Power Rating 0.75 kW ~ 7.5 kW
Product Type Geared Brake Motor
Noise Level Low Noise Operation
Rated Frequency 50 Hz
Dimension (L*W*H) Depends on model (customized)
Mounting Type Foot Mounted / Flange Mounted
Bearing Type Deep Groove Ball Bearing
Weight Varies as per design
Frequency (MHz) 50 Hz
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Ambient Temperature -10C to +50C
IP Rating IP55
Pressure Standard Atmospheric
Current Type AC
Output Power 1 HP to 10 HP (customized range)
Poles Number 4 Pole (standard), customized available
Features Integrated Gearbox with Brake, Robust Construction, Low Maintenance

Brake Type AC Electro-Magnetic Fail Safe Brake
Lubrication Synthetic Gear Oil Filled
Application Material Handling, Conveyors, Industrial Machinery
Duty Cycle S1 (Continuous Duty)
Frame Size 71 to 132
Service Factor 1.15
Gear Ratio 5:1 to 70:1 (as required)
Insulation Class Class F

Product Description

This hot-selling, elite Geared Brake Motor is a paragon of engineering precision, equipped with a redoubtable AC Electro-Magnetic Fail Safe Brake for maximum reliability in critical applications. With a top-ranking design, it features high-efficiency operation, versatile gear ratios (5:1 to 70:1), and robust synthetic gear oil lubrication. Available in frame sizes 71 to 132 and customizable output power (1 to 10 HP), it sets new standards for material handling, conveyors, and industrial machinery. Its TEFC enclosure, low-noise operation, IS/IEC 60034-1 certification, and IP55 sealed construction ensure durability and smooth performance-making it a must-have for industry leaders.

Versatile Usage & Applications of Geared Brake Motor

The Geared Brake Motor excels in demanding environments, serving as a fundamental drive solution for material handling, industrial conveyors, and machinery. It's ideally installed at sites like factories, warehouses, and assembly lines where continuous, reliable power is essential. This elite motor is engineered for both new installations and retrofits, with flexible mounting options and simple application methods, ensuring a tailored fit for varied industrial requirements and maximizing operational uptime and productivity.

Efficient Delivery, Main Markets & Supply Capacity

Our top-ranking Geared Brake Motor is dispatched with secure shipping across India, ensuring a swift and protected delivery experience. With an impressive supply ability and prompt order processing rate, customers can expect timely fulfillment, even for large and customized orders. Our extensive main domestic market coverage encompasses all key industrial regions, providing manufacturing and industrial enterprises with a steady supply of elite motors, tailored to meet urgent and routine demand alike.

FAQ's of Geared Brake Motor:

Q: How does the AC Electro-Magnetic Fail Safe Brake enhance safety in operation?

A: This brake ensures the motor automatically engages during power failure or emergency stops, minimizing operational hazards and protecting personnel and machinery.

Q: What applications is the Geared Brake Motor best suited for?

A: It is ideal for material handling systems, industrial conveyors, and various industrial machinery requirements where continuous duty and controlled braking are essential.

Q: Where can the Geared Brake Motor be installed?

A: These motors are designed for installation at sites such as factories, warehouses, and assembly lines, adaptable to both new setups and existing machinery upgrades.

Q: What is the process for customizing the gear ratio, frame size, or output power?

A: Customization begins at order placement, where specific requirements for gear ratio, frame size, output power, and mounting are discussed and finalized to ensure a perfect fit for your application.

Q: When can customers expect delivery after placing an order?

A: Orders are processed promptly, with delivery times dependent on order volume and customization; however, secure shipping ensures safe and timely arrival across India.

Q: How does the robust construction contribute to low maintenance and long service life?

A: Its heavy-duty build, IS/IEC 60034-1 certification, deep groove ball bearings, and IP55 sealing provide excellent resistance to wear, reducing maintenance and maximizing operational lifespan.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Brake Motor' category

60W Electromagnetic Brake Motor Dimension (L*W*H) : 160mm x 120mm x 110mm Rated Frequency : 50/60 Hz Frequency (MHz) : 50 Hz Weight : 4.2 kg Phase : Other, Single Phase / Three Phase Product Type : Other, Industrial Motor Output Power : 60W Protect Feature : Totally Enclosed Speed : 1300 RPM Sealed Type : Other, Sealed Efficacy : High Efficiency Rated Voltage : 220V / 380V Power : 60W Starting Type : Directonline Voltage : 220V/380V Mounting Type : Flange / Foot Mounted Bearing Type : Ball Bearing Noise Level : 60 dB Power Rating : 60 Watt Current Type : AC Poles Number : Other, 4 Poles Features : High Starting Torque, Quick Response Braking, Low Noise, Maintenance Free Ambient Temperature : 15C to +40C Pressure : Other, Standard Atmospheric IP Rating : ip44 Shaft Diameter : 12 mm Cooling Method : Fan Cooled Color : Grey Motor Type : Electromagnetic Brake Motor Torque : 0.45 Nm Horse Power : 0.08 HP Standard : IS, IEC

Send Inquiry

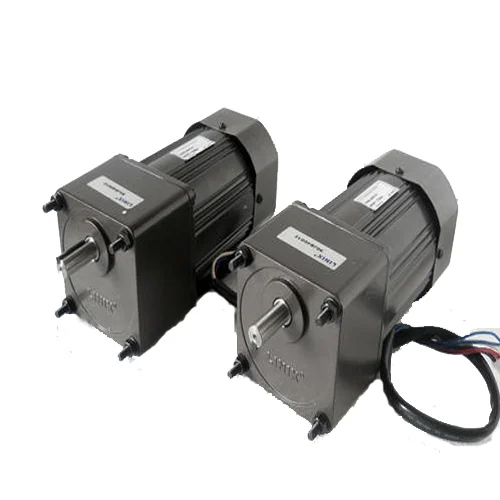

40W Electromagnetic Brake Motor Dimension (L*W*H) : Approx. 180 x 115 x 110 mm Rated Frequency : 50 Hz Frequency (MHz) : 50 Hz Weight : 3.2 kg Phase : Single Phase Product Type : Brake Motor Output Power : 40W Protect Feature : Totally Enclosed Speed : 1350 RPM Sealed Type : Other, Enclosed Efficacy : High Efficiency Rated Voltage : 220V AC Power : 40 Watt Starting Type : Direct OnLine Voltage : 220V AC Mounting Type : Foot Mounted Bearing Type : Ball Bearing Noise Level : 55 dB Power Rating : 40W Current Type : AC Poles Number : 4 Features : Instant brake, maintenance free, compact structure Ambient Temperature : 15C to 40C Pressure : Other, Atmospheric IP Rating : ip44 Shaft Diameter : 12 mm Cooling Method : SelfCooled Color : Grey Motor Type : Electromagnetic Brake Motor Torque : 0.28 Nm Horse Power : 0.05 HP Standard : IS 996
