Industrial Worm Geared Motor

Get a Price/Quote

Product Details:

Features Compact size, High overload capacity, Maintenance free
Bearing Type Deep Groove Ball Bearing
Power Rating IEC Standard
Noise Level Low
Poles Number 2, 4, 6
Motor Type Squirrel Cage Induction Motor
Sealed Type IP55 Enclosure
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Industrial Worm Geared Motor Product Specifications

Phase Three Phase
Power Varies with model
Dimension (L*W*H) Depends on model; typically compact
Product Type Industrial Worm Geared Motor
Weight 12 kg to 85 kg
Ambient Temperature Up to 40C
Torque High Torque Output
Voltage 380 415 V
Cooling Method Air Cooled
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Speed 14 280 rpm
Color Grey
Shaft Diameter Varies per model
Current Type AC
Rated Frequency 50 Hz
IP Rating IP55
Horse Power 0.25 hp to 10 hp
Standard IEC/IS
Frequency (MHz) 50 Hz
Starting Type Direct On Line
Efficacy High Efficiency
Rated Voltage 415 V
Poles Number 2, 4, 6
Motor Type Squirrel Cage Induction Motor
Output Power 0.18 kW to 7.5 kW
Sealed Type IP55 Enclosure
Noise Level Low
Mounting Type Foot / Flange
Power Rating IEC Standard
Bearing Type Deep Groove Ball Bearing
Features Compact size, High overload capacity, Maintenance free

Product Description

Specification

Brand	J D Automation
Voltage	230-415V AC
Phase	Single Phase, 3 Phase
Usage/Application	Industrial
Speed	<2000 RPM
Number Of Poles	4
Frame Size	90 x 90mm
Frequency	50/60 Hz

Superior Build for Harsh Environments

This worm geared motor features high-grade alloy steel gears housed in rugged cast iron, making it highly resistant to corrosion and ensuring a long operational lifespan. Its IP55 enclosure and epoxy powder coating provide additional protection against dust and moisture, making it suitable for the most demanding industrial scenarios.

Versatile Configurations and High Efficiency

With gear ratios ranging from 7.5:1 to 100:1 and power ratings from 0.18 kW to 7.5 kW, this motor offers flexibility for a wide spectrum of applications. Its compatibility with IEC standard motor couplings and flexible mounting options (foot or flange, horizontal or vertical) enable easy installation. The motor also delivers high torque output with minimal vibration and low noise.

FAQ's of Industrial Worm Geared Motor:

Q: How do I install the Industrial Worm Geared Motor in my facility?

A: Installation is straightforward, as the motor is compatible with IEC standard motor couplings and offers flexible mounting options (foot or flange, horizontal or vertical). Ensure the input power matches the specified requirements and follow manufacturer guidelines for secure and proper setup.

Q: What are the benefits of using high-grade alloy steel gears and cast iron housing?

A: High-grade alloy steel gears provide exceptional strength and wear resistance, while the cast iron housing ensures rigidity and durability. This combination delivers long service life and reliable performance even in harsh industrial conditions.

Q: When should I schedule maintenance for this geared motor?

A: The unit is designed to be maintenance-free due to its synthetic oil-filled lubrication system, which ensures long-lasting operation and reduces the need for routine maintenance. However, periodic visual inspections are advised for overall system safety.

Q: Where can this geared motor be used most effectively?

A: This motor is suitable for a variety of industrial sectors, including conveyors, mixers, packaging, material handling, and machinery where continuous duty (S1) and high torque output are required. Its robust design and corrosion resistance make it ideal for use in challenging environments.

Q: What is the process for coupling the motor to existing machinery?

A: The motor uses flexible IEC standard couplings, allowing it to be connected securely to a wide range of compatible machinery. Simply align the motor with your equipment's input shaft and use the appropriate coupling method per the installation manual.

Q: How does the worm geared motor handle heat and vibration during operation?

A: The design ensures minimal vibration and maintains temperature rise within permissible limits. Its deep groove ball bearings, air-cooled system, and totally enclosed fan-cooled (TEFC) protection facilitate stable, low-noise performance.

Q: What advantages does the IP55 enclosure provide?

A: The IP55 enclosure protects the motor from dust ingress and low-pressure water jets, making it suitable for tough industrial environments where moisture or particulate exposure is possible.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Geared Motors' category

Single Phase Gear Motor Voltage : 220 V Speed : 1440 RPM Phase : Single Phase Starting Type : Capacitor Start Power : 180 W Poles Number : Other, 4 poles Frequency (MHz) : 50 Hz Protect Feature : Totally Enclosed Cooling Method : Fan Cooled Torque : 35 Nm Current Type : AC Color : Grey Shaft Diameter : 24 mm Weight : 16 kg Dimension (L*W*H) : 320 x 170 x 170 mm Product Type : Other, Single Phase Gear Motor Ambient Temperature : 10 to 50C Noise Level : <65 dB Output Power : 0.18 kW Sealed Type : Other, IP55 Motor Type : Induction Gear Motor Bearing Type : Ball Bearing Power Rating : 180 W Features : Smooth & Quiet Operation, High Durability Mounting Type : Foot Mounted Horse Power : 0.25 HP Pressure : Other, Standard Atmospheric IP Rating : Other, IP55 Rated Frequency : 50 Hz Efficacy : High Rated Voltage : 220 V Standard : IS 996

Send Inquiry

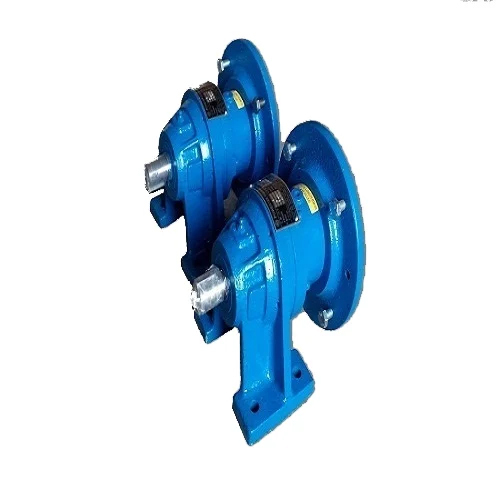

Geared Motor Manufacturer Voltage : 415 V Speed : 1440 RPM Phase : Three Phase Starting Type : DirectOnLine (DOL) Power : 0.25 HP to 20 HP Poles Number : Other, 2, 4, 6, 8 Frequency (MHz) : 50 Hz Protect Feature : Totally Enclosed Cooling Method : Fan Cooled Torque : High Torque Current Type : AC Color : Blue Shaft Diameter : Varies as per model Weight : Varies with model Dimension (L*W*H) : Custom as per requirement Product Type : Other, Geared Motor Ambient Temperature : 20C to +50C Noise Level : Low Output Power : 0.18 KW to 15 KW Sealed Type : Other, IP55 Motor Type : Induction Geared Motor Bearing Type : Double Shielded Ball Bearing Power Rating : 0.18 KW to 15 KW Features : Robust, Energy Efficient, Compact, Maintenance Free Mounting Type : Foot / Flange Mounted Horse Power : 0.25 HP to 20 HP Pressure : Other, Atmospheric IP Rating : Other, IP55 Rated Frequency : 50 Hz Efficacy : IE2 / IE3 High Efficiency Rated Voltage : 415 V Standard : IS: 325/IEC:60034

Send Inquiry

0.25 HP Helical Geared Motor Voltage : 415 V Speed : 1440 RPM Phase : Three Phase Starting Type : Direct On Line (DOL) Power : 0.18 kW Poles Number : Other, 4 Pole Frequency (MHz) : 50 Hz Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Cooling Method : Air Cooled Torque : 22 Nm Current Type : AC Color : Blue Shaft Diameter : 28 mm Weight : Approx 15 kg Dimension (L*W*H) : Customizable Product Type : Other, Geared Motor Ambient Temperature : 10C to +50C Noise Level : Below 65 dB Output Power : 0.25 HP Sealed Type : Other, Sealed Motor Type : Helical Geared Motor Bearing Type : Ball Bearing Power Rating : 0.18 kW Features : Compact design, Low maintenance Mounting Type : Foot/Flange Mounted Horse Power : 0.25 HP Pressure : Other, Standard Atmospheric IP Rating : Other, IP55 Rated Frequency : 50 Hz Efficacy : High Rated Voltage : 415 V Standard : IS/IEC 600341

Send Inquiry

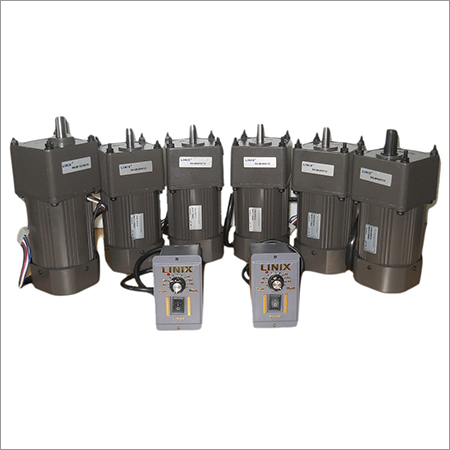

200 Watt AC Geared Motor Voltage : 220V/380V Speed : 60~500 RPM Phase : Other, Single Phase / Three Phase Starting Type : Capacitor Start Power : 200 W Poles Number : 4 Frequency (MHz) : 50/60 Protect Feature : Totally Enclosed Cooling Method : Totally Enclosed Fan Cooled (TEFC) Torque : 0.65 Nm to 18 Nm (depending on gear ratio) Current Type : AC Color : Grey Shaft Diameter : 16 mm Weight : 6.5 Kg (approx) Dimension (L*W*H) : 260 mm x 140 mm x 110 mm (approx) Product Type : Other, AC Geared Motor Ambient Temperature : 10C to 50C Noise Level : <65 dB Output Power : 200 Watt Sealed Type : Other, Sealed Motor Type : Induction Geared Motor Bearing Type : Ball Bearing Power Rating : 200W Features : Low Noise, High Torque, Durable Mounting Type : Flange / Foot Mounted Horse Power : 0.27 HP Pressure : Other, Atmospheric IP Rating : ip44 Rated Frequency : 50 Hz Efficacy : High Efficiency Rated Voltage : 220/380 V Standard : IS:325/IEC
