SCREW JACK MANUFACTURER 1 TON

Product Description

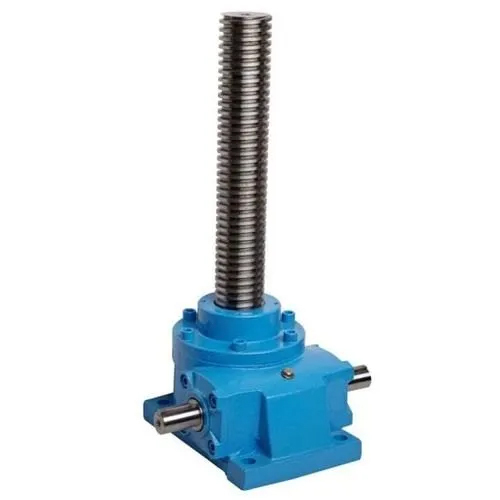

Worm Gear Screw Jack 1 TON

 This product description highlights the features and functionality of a 1 Ton Machine

 Screw Jack.

  Features a 24x4 trapezoidal screw and offers precise control for lifting, lowering, tilting, and slewing movements.

  Designed for efficient and reliable operation with a self-locking function.

  Built as a positive-acting actuator to provide accurate responses to motive power.

Technical specifications

 for a 1-ton capacity machine screw jack, highlighting its construction materials and operating capabilities.

 Main Features:

 It supports a maximum static load of 1 ton with self-locking capabilities and two gear ratios for varying speeds,

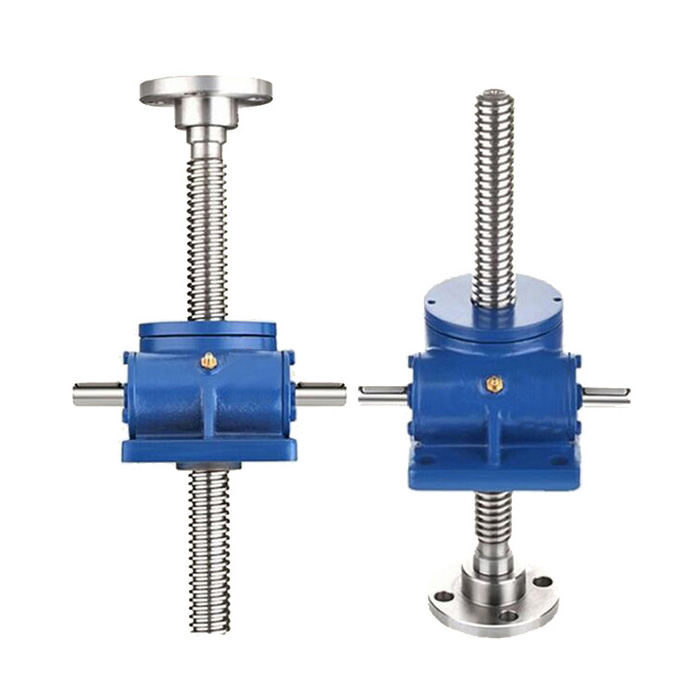

 Design Options: Available in translating, keyed, and rotating screw designs, it can be mounted upright or inverted and includes various screw end fitting options.

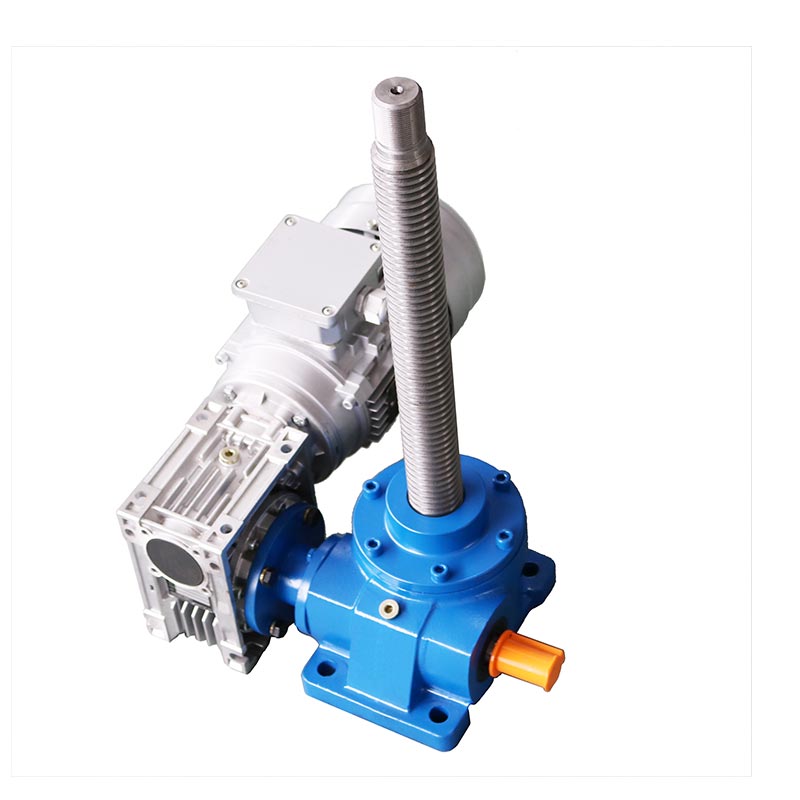

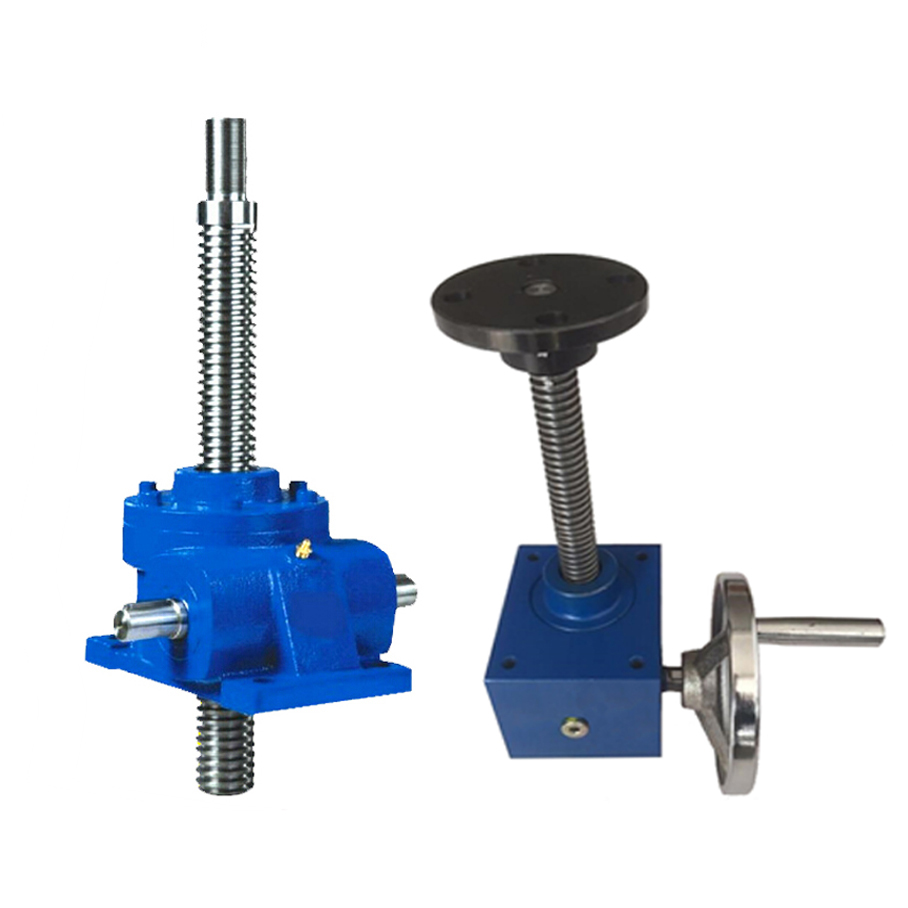

 Power Source: The jack can be operated manually with a hand wheel or electrically via a motor, and units can be combined into synchronized lifting systems.

 Product Material:

   Materials:      Constructed with a ductile iron housing, a C45 steel lifting screw, and a

                            ZQA19-4 casting aluminum bronze worm gear for durability.

   Housing:        High-strength Casting Housing, Ductile Iron.

   Lifting Screw:  C45 Steel as Standard. Custom Stainless Steel 304 or 316.

   Input Shaft (Worm): C45 Steel in high frequency heat treatment process. Custom

                                           Stainless Steel 304 or 316.

   Worm Gear / Travelling Nut / Safety Nut: ZQAl9-4 (Casting aluminum bronze) as

                                           Standard. Custom ZCuSn10Pb1(Casting tin bronze).

   Bearing: Anti-friction Ball Thrust Bearings for Worm Gear. Anti-friction Ball Bearings

                    for Input Shaft(worm). Custom Stainless Steel 304.

   Motor Flange Adapter: High-strength Casting Motor Adapter, Ductile Iron. Custom

                                               Stainless Steel 304 or 316.

   Lubricants: Synthetic Grease, Extreme Pressure EP2 Lithium Grease.
