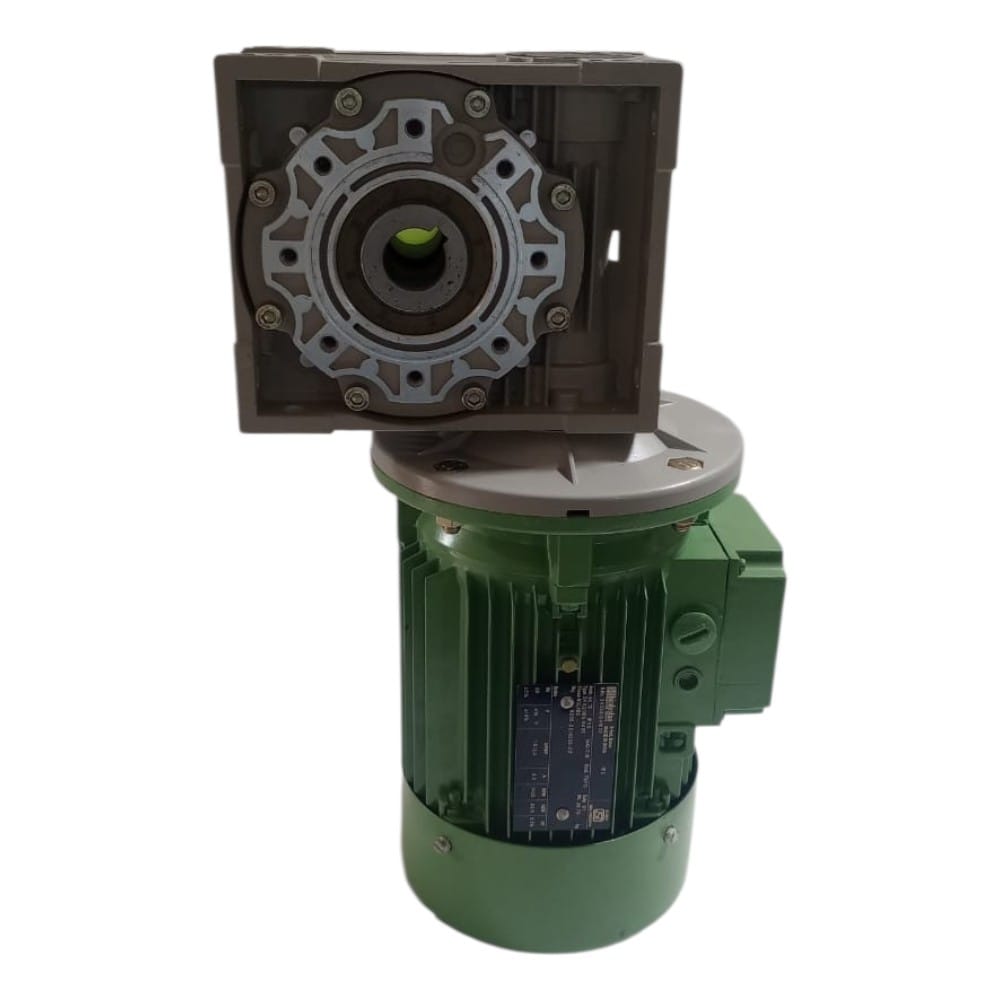

0.37kw 3 Phase Helical Geared Motor

Get a Price/Quote

Product Details:

Cooling Method External Fan Cooled
Ambient Temperature -10C to +50C
Horse Power 0.5 HP
Efficacy IE2 High Efficiency
Features Low Noise, High Efficiency, Compact Design, Durable
Torque Up to 160 Nm
Voltage 415 V
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

0.37kw 3 Phase Helical Geared Motor Product Specifications

IP Rating IP55
Current Type AC
Bearing Type Deep Groove Ball Bearing
Power 0.5 HP
Sealed Type IP55 Sealed
Speed 1440 RPM
Power Rating 0.37 kW
Output Power 0.37 kW
Starting Type Direct On Line (DOL)
Color Grey
Shaft Diameter 28 mm
Poles Number 4
Cooling Method External Fan Cooled
Ambient Temperature -10C to +50C
Dimension (L*W*H) 410 mm x 160 mm x 190 mm
Horse Power 0.5 HP
Efficacy IE2 High Efficiency
Frequency (MHz) 50 Hz
Phase 3 Phase
Features Low Noise, High Efficiency, Compact Design, Durable
Torque Up to 160 Nm
Product Type Geared Motor
Voltage 415 V
Mounting Type Foot / Flange Mounted
Motor Type Helical Geared Motor
Rated Voltage 415 V
Standard IS:325 / IEC
Weight 18 kg
Noise Level 65 dB
Protect Feature Totally Enclosed Fan Cooled (TEFC)
Rated Frequency 50 Hz

Product Description

Experience the exclusive performance of J D Automation's 0.37kw 3 Phase Helical Geared Motor-an astonishingly efficient solution for industrial transmission tasks. Engineered with cast iron housing and unassailable hardened & ground gears, this motor promises uncommon durability and low-noise operation under rigorous conditions. With gear ratios tailored from 5:1 to 70:1, advanced purchase ensures seamless integration into bespoke setups. Enjoy the benefit of IE2 high efficiency, TEFC protection, and flexible installation (horizontal/vertical). Try now for uncompromising reliability, whether you are an exporter, manufacturer, supplier or retailer in India.

Application & Usage of Helical Geared Motor

The 0.37kw 3 Phase Helical Geared Motor excels in heavy-duty industrial environments, including conveyor systems, mixers, extruders, and machine tools. Designed for both horizontal and vertical mounting, it delivers optimal torque and power for continuous operations. Its versatility ensures uncommon adaptability across sectors requiring high reliability and efficiency, making it a preferred choice for applications that demand robust and consistent motion control in manufacturing or processing plants.

Export, Sample Policy & Logistics

Export markets for this Helical Geared Motor span Asia, Africa, and beyond, relying on robust goods transport protocols. Prospective clients benefit from adaptable sample policies tailored to varied requirements, allowing risk-free assessment of quality. With streamlined logistics, average delivery times are competitive, ensuring timely product arrival and minimized outlay. Every aspect, from packaging to global shipment, is meticulously organized, supporting manufacturers and suppliers in securing unassailable supply chains.

Specification

Country of Origin	Made in India
Brand	J D Automation
Power	0.37 KW
Color	GREY
Gearbox Diameter	SHAFT DIA-20MM
Voltage	230-415V AC
Phase	Single Phase, 3 Phase
Usage/Application	Industrial
Mounting	FLANGE /FOOT
Number Of Poles	4 POLE
Speed	Max 1800 RPM
Frequency	50/60 Hz

FAQ's of 0.37kw 3 Phase Helical Geared Motor:

Q: How can the 0.37kw 3 Phase Helical Geared Motor be installed?

A: This motor supports both horizontal and vertical installation, with mounting types including foot and flange for flexible integration into diverse industrial systems.

Q: What are the main benefits of using a Helical Geared Motor?

A: Key advantages include high efficiency (IE2 class), durable cast iron housing, low noise operation, and the capability to tailor gear ratios from 5:1 to 70:1 based on specific application needs.

Q: When are sample units available for trial?

A: Sample policies are adaptable; eligibility and timelines depend on individual outlay and agreement, enabling prospective clients to assess quality before committing to larger orders.

Q: Where are these motors primarily exported?

A: The main export markets include various regions across Asia, Africa, and beyond, supporting global logistics for manufacturers and distributors.

Q: What process ensures product durability and reliability?

A: Every motor undergoes precise manufacturing with hardened, ground gears, high-grade synthetic oil lubrication, and deep groove ball bearings from top brands like SKF and FAG to uphold unassailable performance standards.

Q: How is product delivery managed?

A: Product delivery relies on efficient logistics systems that guarantee timely arrival through controlled goods transport, reducing supply chain interruptions and ensuring competitive delivery times.
