Product Description

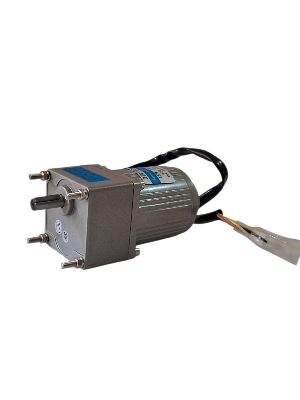

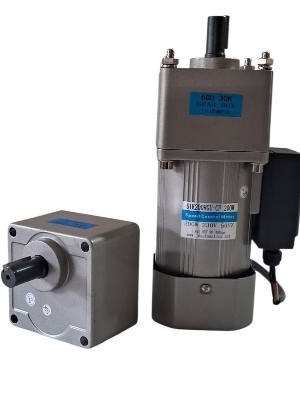

90 Watt AC Geared Motor J D Automation
High Torque Industrial Drive Solution for Precision Automation
J D Automation's 90 Watt AC Geared Motor is a premium-grade industrial power transmission solution engineered to deliver superior torque, precise speed control, and reliable continuous-duty performance. Designed for demanding industrial automation and material handling applications, this geared motor combines a high-efficiency AC induction motor with a precision-machined reduction gearbox to achieve exceptional output torque while maintaining smooth and energy-efficient operation.
Manufactured using 100% electrolytic copper windings, precision-ground alloy steel gears, heavy-duty bearings, and robust aluminum die-cast housing, the motor ensures maximum durability, low maintenance requirements, and long operational life. Its advanced gearbox design minimizes backlash, vibration, and noise, providing consistent performance even under varying load conditions.
Advanced Technical Specifications
|
Parameter
|
Specification
|
|
Product Type
|
AC Geared Motor
|
|
Power Rating
|
90 Watt
|
|
Motor Technology
|
AC Induction Motor
|
|
Supply Voltage
|
220V AC Single Phase / 415V AC Three Phase
|
|
Frequency
|
50Hz / 60Hz
|
|
Motor Speed
|
1350 RPM / 1400 RPM
|
|
Output Speed Range
|
0.5 RPM to 500 RPM
|
|
Gear Reduction Ratio
|
3:1 to 3000:1
|
|
Output Torque
|
Up to 300 Kg-cm
|
|
Duty Cycle
|
S1 Continuous Duty
|
|
Motor Efficiency
|
High Efficiency Design
|
|
Insulation Class
|
Class F (Standard)
|
|
Protection Class
|
IP55 Standard, IP65 Optional
|
|
Cooling Method
|
TEFC (Totally Enclosed Fan Cooled)
|
|
Rotation
|
CW / CCW Reversible
|
|
Mounting Options
|
Foot Mount, Flange Mount, Face Mount
|
|
Gear Material
|
Case Hardened Alloy Steel
|
|
Shaft Material
|
EN8 / EN19 Steel
|
|
Housing Material
|
High-Strength Aluminium Die Cast
|
|
Bearings
|
Heavy Duty Deep Groove Ball Bearings
|
|
Lubrication
|
Long-Life Synthetic Grease
|
|
Ambient Temperature
|
-10C to +50C
|
|
Noise Level
|
Less than 60 dB
|
|
Service Life
|
30,000+ Operating Hours
|
Material Handling Systems
- Belt Conveyors
- Roller Conveyors
- Chain Conveyors
- Transfer Systems
Industrial Automation
- Assembly Line Equipment
- Indexing Tables
- Special Purpose Machines (SPM)
- Motion Control Systems
Packaging Machinery
- Filling Machines
- Labeling Machines
- Carton Sealing Machines
- Wrapping Machines
Food & Pharmaceutical Equipment
- Inspection Conveyors
- Processing Machines
- Packaging Systems
- Sorting Equipment
Why Choose J D Automation?
J D Automation specializes in manufacturing high-performance geared motor solutions for industrial automation, material handling, and OEM applications. Every 90 Watt AC Geared Motor undergoes stringent quality inspections and performance testing to ensure maximum reliability, efficiency, and durability under real-world operating conditions.
Available Output Speeds: 0.5 RPM to 500 RPM
Gear Ratios: 3:1 to 3000:1
Mounting: Foot, Flange, Face Mounted
Customization: Available as per customer requirements
Reliable Power at 90W with High TorqueEngineered for precision and durability, this AC Gear Motor provides a steady 90-watt output and superior 20 N-cm torque. Its robust EN8 construction, together with high-quality SKF bearings, ensures long-lasting performance, even in tough conditions. The fan-cooled and totally enclosed design further enhances its reliability and safety.
Optimized for Industrial and Commercial ApplicationsWith a single-phase 230V input, 50Hz frequency, and 4-pole induction motor standard, this gear motor delivers consistent performance. The 30 RPM speed is ideal for numerous industrial automation and material handling tasks. The flange mounting system makes installation quick and secure in a variety of settings.
Enhanced Safety and EfficiencyFeaturing IP44 protection and a noise level of just 50 dB, this gear motor is designed with operator safety and comfort in mind. The IE1-rated efficiency and fan-cooling further support energy-saving operation, while the enclosed body protects internal components from dust and moisture.
FAQ's of AC Gear Motor Manufacturer:
Q: How is the AC Gear Motor installed, and what mounting options are available?
A: The motor comes with a flange mounting type, making it straightforward to secure it onto flat surfaces typically found in industrial setups. Installation should follow the supplied guidelines for best results and enhanced safety.
Q: What are the main benefits of using this 90 Watt AC Gear Motor in industrial applications?
A: This gear motor offers high torque, efficient power delivery, reliable operation, and low noise levels. Its robust construction and enclosed design ensure long service life and protection in challenging environments.
Q: When is maintenance required for the 90W AC Gear Motor, and what is the process?
A: Routine inspection and timely lubrication of moving parts, especially the SKF bearings, are recommended for optimal longevity. For detailed schedules and procedures, refer to the included maintenance manual.
Q: Where can this AC Gear Motor be effectively used?
A: This motor is ideal for both industrial and commercial settings, such as conveyor systems, material handling equipment, and automation machinery, thanks to its high torque and durable body.
Q: What safety features does the AC Gear Motor include?
A: The motor has a totally enclosed, IP44-rated body for protection against dust and moisture, and runs at a low noise level (50 dB). The fan-cooled design prevents overheating during prolonged use.
Q: How does the warranty process work for this gear motor?
A: The motor is covered by a 1-year warranty against manufacturing defects. For warranty claims, contact the supplier or manufacturer with proof of purchase and details of the defect.
