DC Brake Motor

Get a Price/Quote

Product Details:

Efficacy High efficiency
Noise Level Low
Pressure Atmospheric
Sealed Type Enclosed
Rated Voltage 415V
Ambient Temperature -15C to 40C
Poles Number 4
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DC Brake Motor Product Specifications

Protect Feature Totally Enclosed Fan Cooled (TEFC)
Frequency (MHz) 50 Hz
Starting Type Direct-On-Line (DOL)
Rated Frequency 50 Hz
Voltage 415 V
Shaft Diameter Custom/Standard
Power Rating 0.37 kW to 7.5 kW
Product Type DC Brake Motor
Cooling Method IC411 (Self cooled with external fan)
Motor Type Squirrel Cage Induction Motor with DC Brake
Bearing Type Ball Bearing
Features Quick braking; Reliable performance; Easy installation
Color Blue/Grey
Current Type AC
Power 0.5 HP - 10 HP
Torque High starting torque
Mounting Type Foot / Flange Mounted
Horse Power 0.5 HP to 10 HP
Dimension (L*W*H) Standard/customized
Poles Number 4
Sealed Type Enclosed
Pressure Atmospheric
Phase Three Phase
Ambient Temperature -15C to 40C
Weight Varies as per model
Rated Voltage 415V
Output Power 0.37 to 7.5 kW
IP Rating IP55
Noise Level Low
Efficacy High efficiency
Speed 1440 RPM

Lubrication Grease Lubricated Bearings
Construction Robust Cast Iron Body
Insulation Class Class F
Enclosure Totally Enclosed Fan Cooled (TEFC)
Resistance to Vibration High
Brake Type Electromagnetic DC Fail Safe
Application Lifts, Cranes, Hoists, Conveyors, Machine Tools
Rotor Type Squirrel Cage
Coupling Flexible
Brake Voltage 190 V DC or 220 V DC
Duty Cycle S1 (Continuous)
Direction of Rotation Reversible

Product Description

The DC Brake Motor offers a cost-effective and popular solution for demanding industrial applications, such as lifts, cranes, and conveyors. Its enlightened engineering includes a potent electromagnetic DC fail-safe brake, robust cast iron body, and radiant blue/grey finish. TEFC enclosure, high starting torque, and superior vibration resistance ensure reliable continuous savings in performance and maintenance costs. With high efficiency and flexible coupling, this DC Brake Motor delivers quick braking and steadfast reliability. Available from 0.5 HP to 10 HP (0.37 kW to 7.5 kW), it embodies durability and modern mechanical excellence.

DC Brake Motor Widely Used & Feature-Rich

Renowned for robust performance, the DC Brake Motor is trusted by manufacturers, exporters, retailers, and suppliers across India. Its high starting torque, low noise level, and quick braking make it invaluable for equipment such as lifts, hoists, machine tools, and conveyors. Designed for easy installation and continuous operation (S1 duty cycle), this motor suits both standard and customized dimensions. Its advanced TEFC protection and radiant cast iron enclosure ensure longevity and operational safety in tough environments.

Payment, Delivery & Export Market Value

Our DC Brake Motor commands strong market value and competitive supply across main export markets including Asia, Africa, and the Middle East. Orders are promptly dispatched, typically within 2-4 weeks depending on customization and volume. Payment terms are flexible, supporting advance payments or secure account settlements for retailers and wholesalers. With reliable logistics and assured quality, clients benefit through timely delivery and consistent savings on operational costs.

FAQs of DC Brake Motor:

Q: How does the DC Brake Motor provide reliable braking for industrial equipment?

A: The DC Brake Motor uses an electromagnetic DC fail-safe brake system that quickly engages to stop motion immediately, ensuring safety and reliability for lifts, cranes, and similar machinery.

Q: What are the main benefits of choosing this motor for continuous operation?

A: Its S1 duty cycle and robust construction allow for uninterrupted, continuous use while maintaining high efficiency, low noise, and potent starting torque key for demanding industrial environments.

Q: Where can this DC Brake Motor be installed?

A: It is suitable for mounting on lifts, cranes, hoists, conveyors, and machine tools. The flexible installation options (foot/flange) and customizable shaft diameters allow adaptation to various mechanical systems.

Q: What is the process for ordering and receiving the DC Brake Motor?

A: Contact our supply team with specifications and desired quantity. Upon order confirmation, motors are dispatched within 2-4 weeks, ensuring prompt delivery and market value advantages to domestic and export clients.

Q: When should lubrication or maintenance be performed on these motors?

A: Routine maintenance includes regular checking and re-greasing of ball bearings to sustain smooth, radiant performance and prevent unnecessary downtime in high-duty applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Brake Motor' category

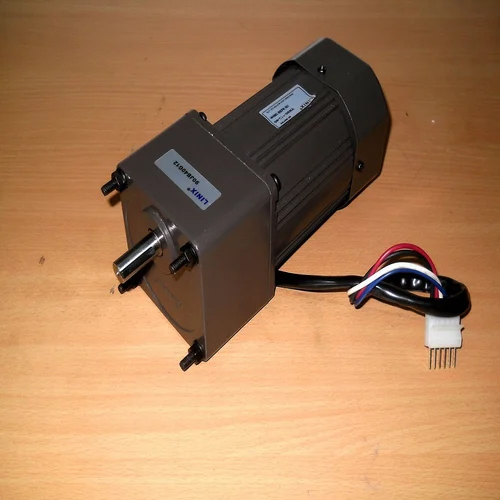

Geared Brake Motor Voltage : 415 V / 230 V Rated Frequency : 50 Hz Product Type : Other, Geared Brake Motor Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Frequency (MHz) : 50 Hz Starting Type : Direct On Line (DOL) Power : 0.75 kW to 7.5 kW Sealed Type : Other, IP55 Phase : Other, Three Phase / Single Phase Weight : Varies as per design Rated Voltage : 415 V Output Power : 1 HP to 10 HP (customized range) Dimension (L*W*H) : Depends on model (customized) Efficacy : High Efficiency Speed : 1440 RPM / 960 RPM Shaft Diameter : Custom (standard sizes: 24mm to 38mm) Power Rating : 0.75 kW ~ 7.5 kW Motor Type : Squirrel Cage Induction Geared Motor with Brake Cooling Method : Fan Cooled Bearing Type : Deep Groove Ball Bearing Features : Integrated Gearbox with Brake, Robust Construction, Low Maintenance Current Type : AC Torque : Up to 150 Nm (modelspecific) Mounting Type : Foot Mounted / Flange Mounted Horse Power : 1 HP to 10 HP Color : Blue / Grey Pressure : Other, Standard Atmospheric Ambient Temperature : 10C to +50C Poles Number : Other, 4 Pole (standard), customized available Noise Level : Low Noise Operation IP Rating : Other, IP55 Standard : IS/IEC 600341 certified
