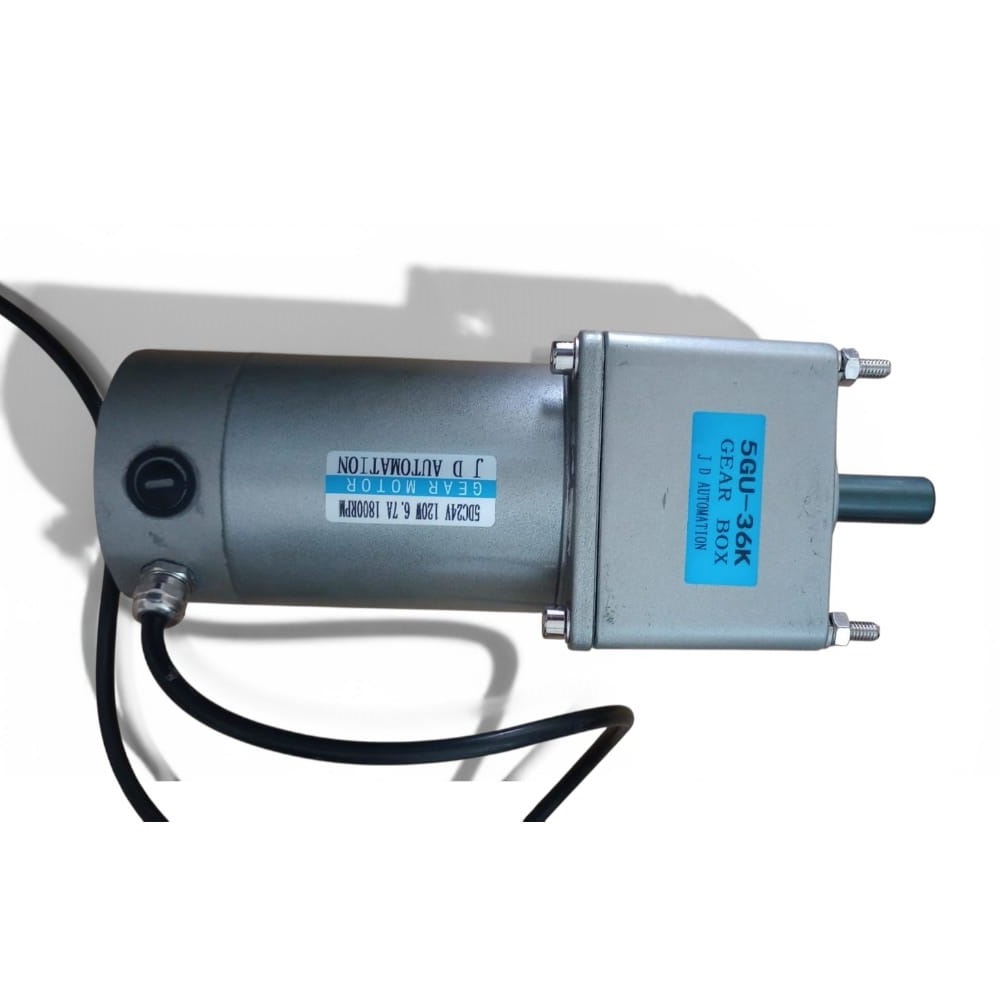

DC gear motor
40-450W 90mm
Product Model Explantion:
Code: 2:60*60mm 3:70*70mm 4:80*80mm 5:90*90mm 6:104*104mm 7: 120*120
DC Motor
Rated power 15:15W 25:25W 60: 60W 200:200W 450 : 450W .
Reated voltage 12:DC12V 24:DC24V 90:DC90V 220:DC220V
shape of motor shaft GU: Reinforced Helival Gear GN:General Helival Gear A1 :Milling Keyway A:Flat type. RV :Representative with RV dedicated
M is for brake
Gear Box
Model&Dimension: 2:60mm 3:70mm 4:80mm 5:90mm 6:104mm 7:120mm
Gear Type
GN : Common Helical Gear
GU : Reinforced Helical GEar
Reduction ratio 1 : 50 50:Reduction Ratio 1:50 10X denotes the mid reduction ratio 1:10
Bearing Type K:Ball bearing (Mark KB for Type GU square case
General specification of dc motor
In the circumstance of normal ambient temperature and humidity, the resistance can be up to 20 MO or more when
Insulation resistance
500VDC megge is applied between the windings and the frame after rated motor operations .
In the circumstance of normal ambient temperature and humidity, there will be no problem to withstand 1.5KV
Insulation voltage
(three phase400V: 2KV ) at 50/60Hz between the windings and the frame for 1minute after rated motor operation.
Temperature rise
The temperature rise should be lower than 80C measured by resistance method when the motor is working
Insulation class class F ( 180)
Using temperature -10C 40C No freeze
Using humidity Place without dew
