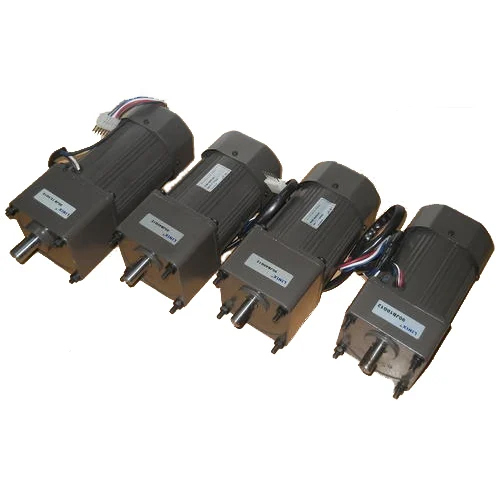

3 phase AC gear motor manufacturers

7850.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Frequency 50 Hz Hertz (HZ)
Features Compact design, Low maintenance
Noise Level Below 65 dB db
Cooling Method Air Cooled
Poles Number Other
Efficacy High
Power Rating 0.18 kW
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

3 phase AC gear motor manufacturers Price And Quantity

Minimum Order Quantity 5 Number
Price 7850.0 INR/Piece

3 phase AC gear motor manufacturers Product Specifications

Standard IS/IEC 60034-1
Output Power 0.25 HP Horsepower (HP)
Rated Voltage 415 V Volt (V)
Protect Feature Other
Bearing Type Ball Bearing
Ambient Temperature -10 C to +50 C Celsius (oC)
Mounting Type Foot/Flange Mounted
Voltage 415 V Volt (v)
Current Type AC
Starting Type Direct On Line (DOL)
Dimension (L*W*H) Customizable Millimeter (mm)
Torque 20 N-m
Horse Power 0.25 HP
Motor Type Helical Geared Motor
Pressure 1 PSI
Weight Approx 8kg Kilograms (kg)
Power 0.18 kW Watt (w)
Shaft Diameter 15 mm Millimeter (mm)
Frequency (MHz) 50 Hz Hertz (HZ)
Poles Number Other
Cooling Method Air Cooled
Phase Three Phase
Efficacy High
Power Rating 0.18 kW
Product Type Other
Color GREY
Noise Level Below 65 dB db
Rated Frequency 50 Hz Hertz (HZ)
Speed 1440 RPM RPM
Features Compact design, Low maintenance

Gearbox Ratio As per Requirement (Standard 10:1)
Efficiency ~80%
Mounting Position Horizontal / Vertical
Duty Cycle S1 Continuous Duty
Service Factor 1.0
Thermal Protection Built-In Thermal Protection
Housing Material Cast Iron
Gear Material High Grade Alloy Steel
Lubrication Grease Filled
Insulation Class Class F

3 phase AC gear motor manufacturers Trade Information

Delivery Time 1 Days

Product Description

J D Automation manufacturer 0.25 HP (0.18 kW) 3-phase gear motor is a low-power, high-torque industrial drive designed for continuous applications like conveyor belts, packaging lines, and small automation setups. These units combine a standard three-phase AC induction motor with a reduction gearbox to lower output speed and multiply torque safely. Technical Overview Power Rating: 0.25 HP or 0.18 kW.

Electrical Supply: Standard 3-phase AC power, typically rated for 415V at 50Hz

230/400V depending on region. Base Motor Speed: Usually a 4-pole design with an unreduced base speed of around 1400 RPM to 1500 RPM.Output Speed Range: The final RPM is determined by the gearbox reduction ratio . Common configurations yield final output speeds anywhere from 2 RPM up to 200

Versatile Application & Usage

The 0.25 HP Helical Geared Motor is crafted for dominant performance in versatile industrial environments. Ideal for conveyor systems, material handling and machinery automation, it supports both horizontal and vertical setups. Its uncommon build quality allows use on steel, concrete, or composite surfaces. With robust torque delivery and compact design, it's perfect for applications demanding continuous and reliable operation in manufacturing plants, packing lines, and mechanical workshops.

Terrific Supply & Distribution

We ensure rapid supply and shipment of the 0.25 HP Helical Geared Motor throughout India. Supported by a large supply ability, exchanges for standard specifications are available, facilitating hassle-free procurement for manufacturers and suppliers. Payment terms are flexible, supporting advance payments, online transactions, and secure exchange processes. Shipped from major domestic markets, we guarantee quality and prompt delivery for your business needs.

FAQ's of 0.25 HP Helical Geared Motor:

Q: How can I determine the right gearbox ratio for my application?

A: The standard gearbox ratio is 10:1, but customization is available based on your specific load and speed requirements. Consult with our export team for suitable ratios.

Q: What are the typical usage applications for the 0.25 HP Helical Geared Motor?

A: This motor is ideal for conveyors, packing lines, assembly machinery, and any industrial process requiring compact, continuous-duty gear-driven operation.

Q: Where can the motor be shipped within India?

A: We ship the 0.25 HP Helical Geared Motor to all major and regional markets across India. Contact our supply department for detailed shipping regions.

Q: What surface types is this motor compatible with?

A: The motor is designed for installation on steel, concrete, and composite surfaces, ensuring stable mounting in dynamic environments.

Q: What benefit does built-in thermal protection offer during operation?

A: The built-in thermal protection safeguards the motor from overheating, enhancing safety, longevity, and consistent efficacy during continuous use.
