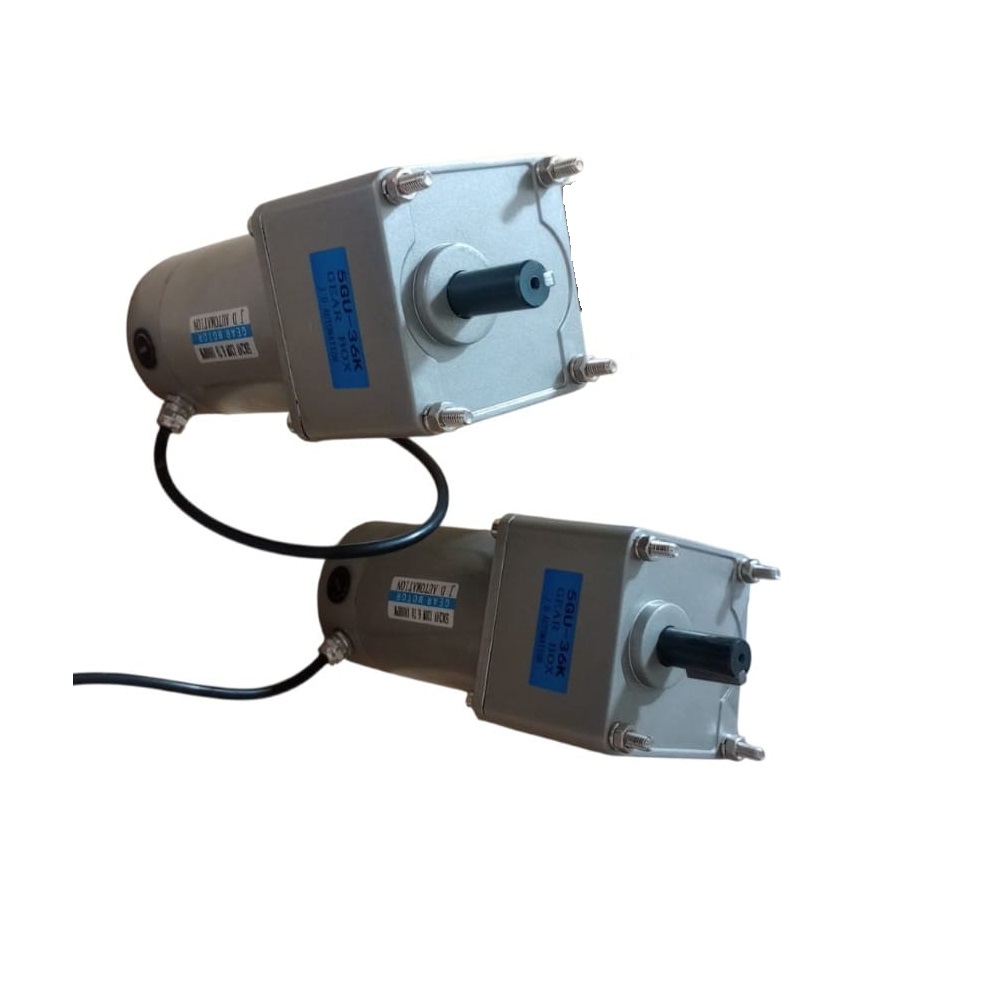

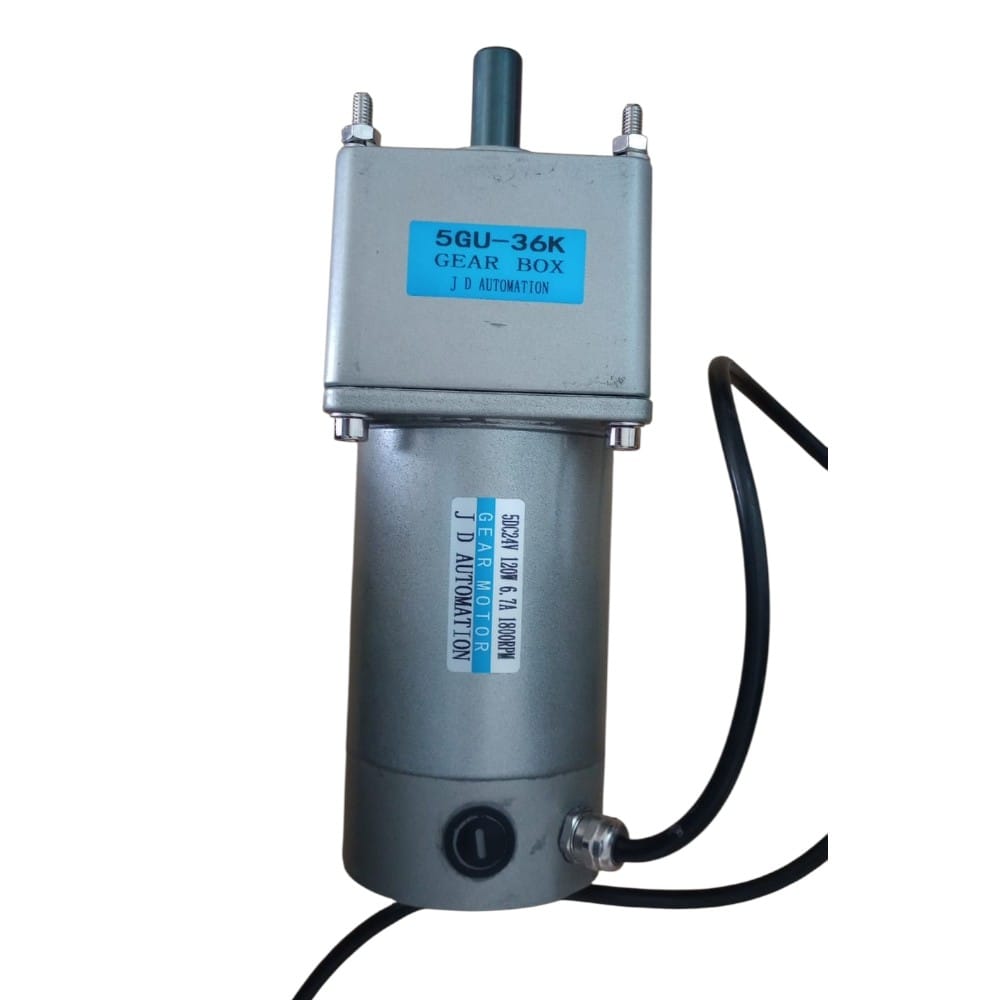

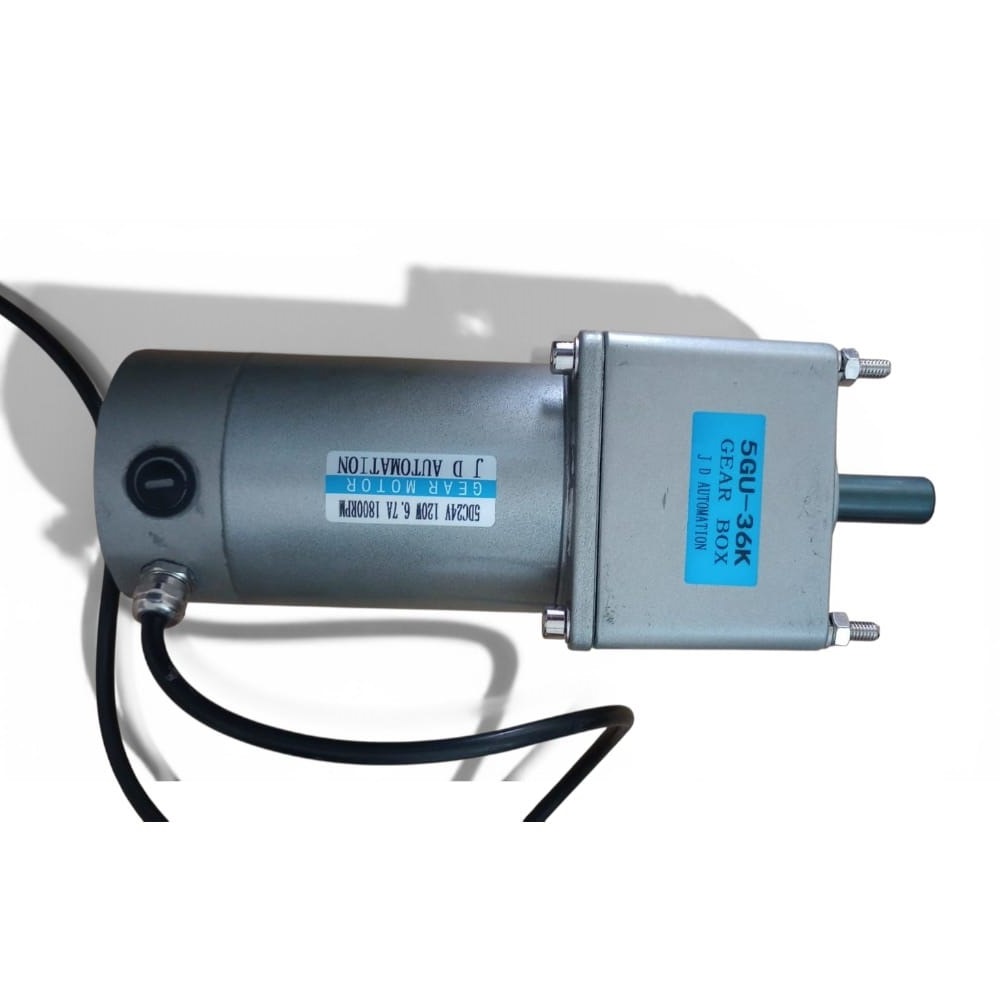

DC Gear Motor manufacturer in pune

6500.0 INR/Piece

Get a Price/Quote

Product Details:

Torque 20 N-m
Rated Frequency 50 Milihertz
Power Rating 90watt
Poles Number 2
Horse Power 1/8hp
Bearing Type ball beaing
Noise Level 50 db
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DC Gear Motor manufacturer in pune Price And Quantity

Minimum Order Quantity 1 Number
Price 6500.0 INR/Piece

DC Gear Motor manufacturer in pune Product Specifications

Weight 5 Kilograms (kg)
Phase dc
Power 90 Watt (w)
Warranty 1 year
Material en8 for gearbox
Rated Current 3.75 Ampere (amp)
Rated Voltage 24 Volt (V)
Color grey
Starting Type Electric Start
IP Rating ip44
Sealed Type Packing seal
Mounting Type flange
Speed 1800 RPM
Current Type 24vdc
Efficacy 85
Usage & Applications industrial, solor ,battery operated
Voltage 24 Volt (v)
Product Type PMDC Motor
Features high torque
Shaft Diameter 15 Millimeter (mm)
Protect Feature Totally Enclosed
Poles Number 2
Noise Level 50 db
Bearing Type ball beaing
Horse Power 1/8hp
Dimension (L*W*H) 90x90x256 Millimeter (mm)
Power Rating 90watt
Frequency (MHz) 50 Hertz (HZ)
Torque 20 N-m
Rated Frequency 50 Milihertz
Output Power 90 Watt (w)

DC Gear Motor manufacturer in pune Trade Information

Delivery Time 30 Days

Product Description

DC gear motor

40-450W 90mm

Product Model Explantion:

Code: 2:60*60mm 3:70*70mm 4:80*80mm 5:90*90mm 6:104*104mm 7: 120*120

DC Motor

Rated power 15:15W 25:25W 60: 60W 200:200W 450 : 450W .

Reated voltage 12:DC12V 24:DC24V 90:DC90V 220:DC220V

shape of motor shaft GU: Reinforced Helival Gear GN:General Helival Gear A1 :Milling Keyway A:Flat type. RV :Representative with RV dedicated

M is for brake

Gear Box

Model&Dimension: 2:60mm 3:70mm 4:80mm 5:90mm 6:104mm 7:120mm

Gear Type

GN : Common Helical Gear

GU : Reinforced Helical GEar

Reduction ratio 1 : 50 50:Reduction Ratio 1:50 10X denotes the mid reduction ratio 1:10

Bearing Type K:Ball bearing (Mark KB for Type GU square case

General specification of dc motor

In the circumstance of normal ambient temperature and humidity, the resistance can be up to 20 MO or more when

Insulation resistance

500VDC megge is applied between the windings and the frame after rated motor operations .

In the circumstance of normal ambient temperature and humidity, there will be no problem to withstand 1.5KV

Insulation voltage

(three phase400V: 2KV ) at 50/60Hz between the windings and the frame for 1minute after rated motor operation.

Temperature rise

The temperature rise should be lower than 80C measured by resistance method when the motor is working

Insulation class class F ( 180)

Using temperature -10C ~40C No freeze

Using humidity Place without dew
